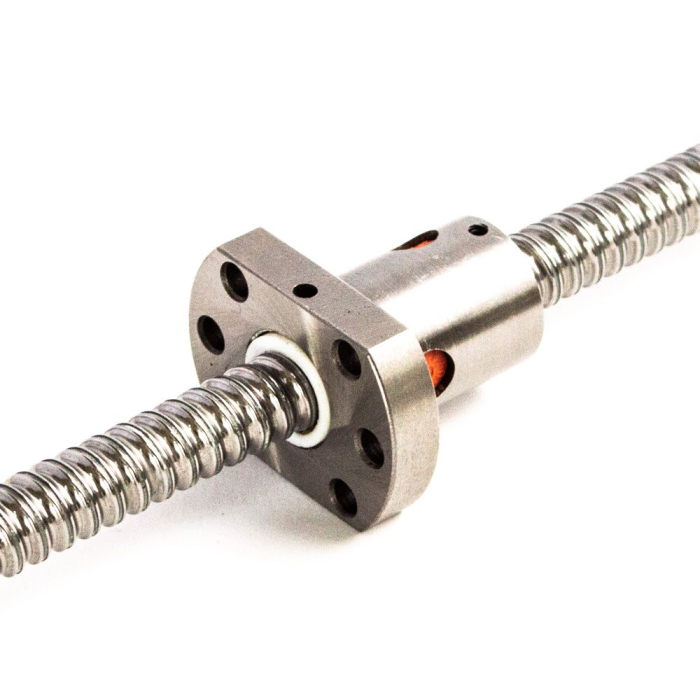

Ball Screw with nut SFU1204 500mm

Specifications:

• Ball screw rod diameter: 12mm
• Pitch: 4mm per revolution
• Length from end to end: 500mm
• Effective travel length: 400mm
• Product code: SFU1204
• Static load rating: 6.7kN
• Dynamic load rating: 4.0kN
• Fixed end machined for BK10 or FK10 bearing block
• Floating end machined for FK10 or FF10 bearing block
