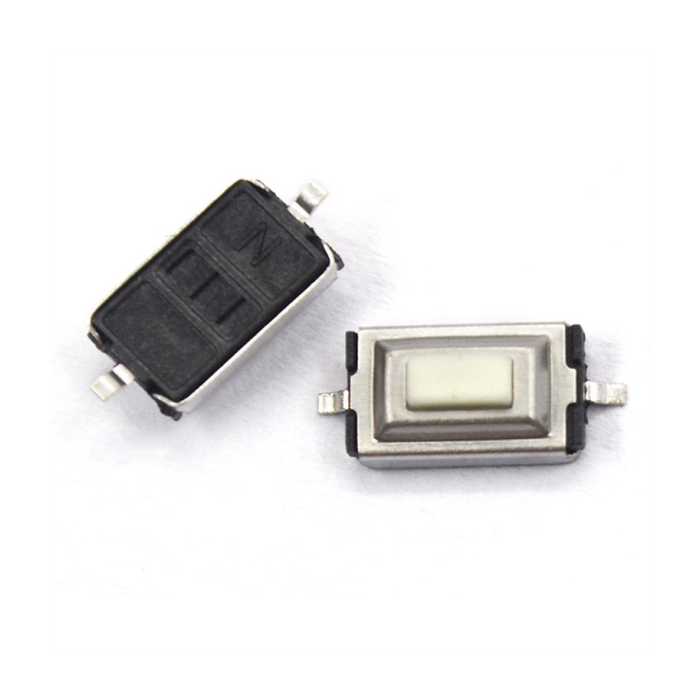

Micro Switch 2 Pin SMD Tactile Push Button
Description
- Description: SMD Tactile micro push button.
- This push button is a Micro Switch.
- Total pins: 2
- This is a small, surface-mount momentary tactile switch with two pins that is widely used in consumer electronics, embedded systems, and DIY projects.
- It is appropriate for usage in reset buttons, human input controls, and microcontroller interfaces.
- Pressing activates the switch, which returns to its original condition when released.
Specifications:
- Switch Type: Tactile, SPST (Momentary ON)
- Mounting Style: SMD
- Size: 3mm (W) × 6mm (L) × 2.5mm (H)
- Operating Voltage & Current: 12V DC @ 50mA
- Operation Force: 1.56
- Operation Stroke: 0.25mm
- Bounce Time: ≤ 10 ms
- Contact Resistance: ≤ 100 mΩ
- Electrical Life: 300,000 cycles
- Operating Temperature: -20°C to +70°C
| SKU | BUT-0003-D12 |
|---|
