10A10 10A 1000V

ZAR 11.40 ZAR 9.91
In stock
SKU
DIO-0057-B02

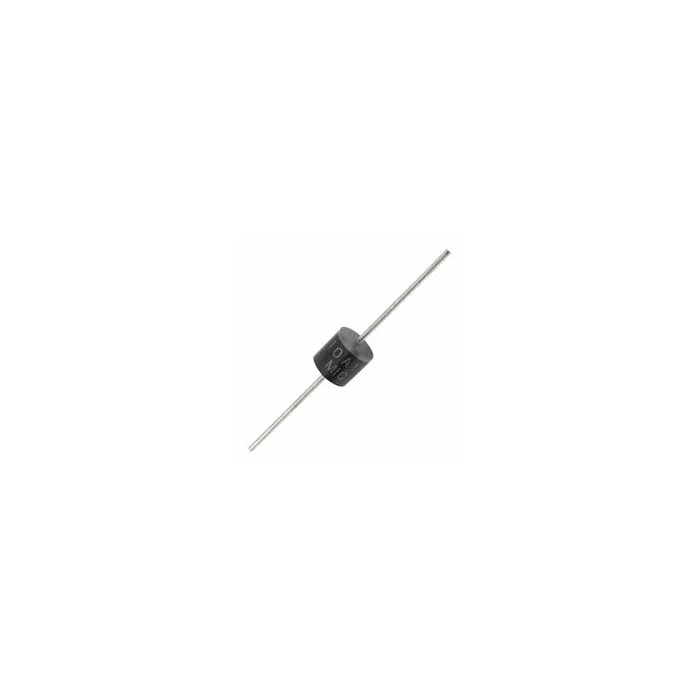

10A10 10A 1000V :

The 10A10 is a general-purpose rectifier diode designed for high-voltage applications. With a reverse voltage rating of 1000V and a forward current rating of 10A, it is commonly used in power supplies, inverters, and rectification circuits that require high current handling and efficient operation under moderate to high voltage conditions.

Specifications:

  • Reverse Voltage (VR): 1000V
  • Forward Current (IF): 10A
  • Forward Voltage Drop (VF): 1.1V at 10A
  • Peak Reverse Current (IR): 5µA at 1000V
  • Package Type: DO-201 (Axial)
  • Pins: 2
  • Operating Temperature Range: -55°C to +150°C
  • Polarity: Cathode marked with a band
