Description:

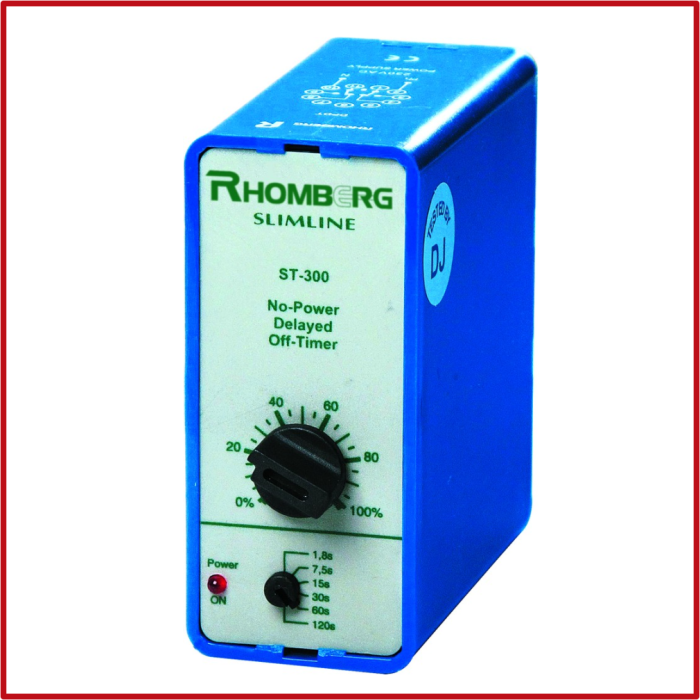

• The Timer is sold with a 11-Pin IP00 rectangular base.
• This Timer is a multi-range timer that delay the release of the relay after a power supply breakdown.
• The time delay is adjustable in six overlapping bands.
• When power is applied to the unit, the relay immediately activates, and the LED indicates that the power is on.
• While the power is on, an internal battery or capacitor is charged.
• When power fails, the LED turns off, but the relay stays energized.
• The timer now gets power from the internal capacitor or battery.
• If the power is turned off for more than the specified time, the relay deenergizes.
• If power is restored before the given period has elapsed, the relay will remain operational.
• This timer has a timing range of 0.15 to 120 seconds.
• To charge the internal capacitor, the item must be powered on for at least two seconds before being interrupted.
