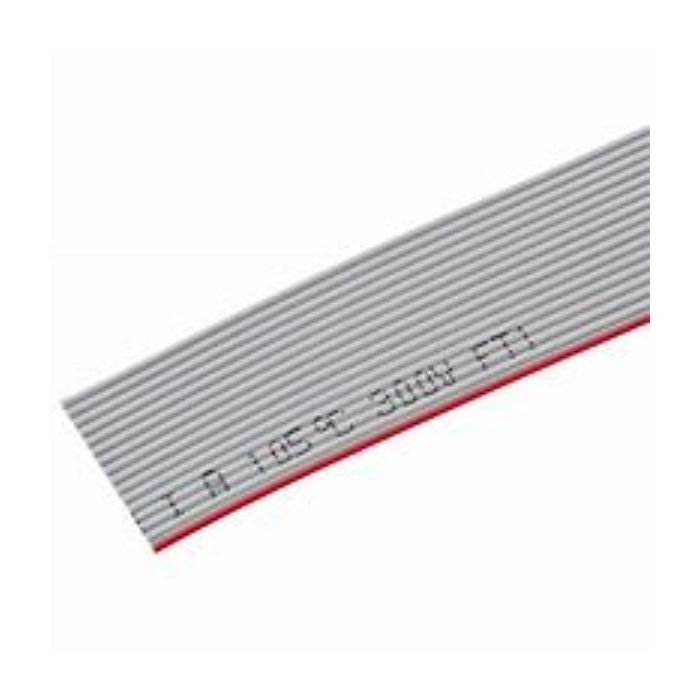

16W Grey Ribbon Cable 1M
Description:
- The 16W Grey Ribbon Cable is a flat ribbon cable used to transmit various signals or power across boards or systems.
- It has 16 parallel conductors, making it excellent for compact and structured wiring in electronics applications.
- The cable is offered by the meter (100 cm) and is extensively used in prototyping to connect PCBs, IDC connections, and IC chips.
- Its grey PVC insulation has a red dyed edge to help identify pin 1, which reduces connecting errors.
- The cable is flexible enough to be folded nearly in half while maintaining a secure electrical connection.
Specifications:
- Type: Flat ribbon cable.
- Number of Conductors: 16 wires (16-way).
- Wire Gauge: 28 AWG.
- Pitch (Spacing): 1.27 mm.
- Ribbon Width: 12.7 mm.
- Length: Sold per 100 cm.
- Cable Colour: Grey with red dyed edge.
- Voltage Rating: 300 V.
- Current Rating: 1.3 A @ 10°C rise above ambient.
- Capacitance: 45.9 pF/m.
- Characteristic Impedance: 105 Ω.
- Flexibility: Can be folded almost in half while maintaining good connections.
- Usage: Ideal for prototyping, connecting PCBs, connectors, IC chips.
| SKU | CAB-0003-I01 |
|---|
