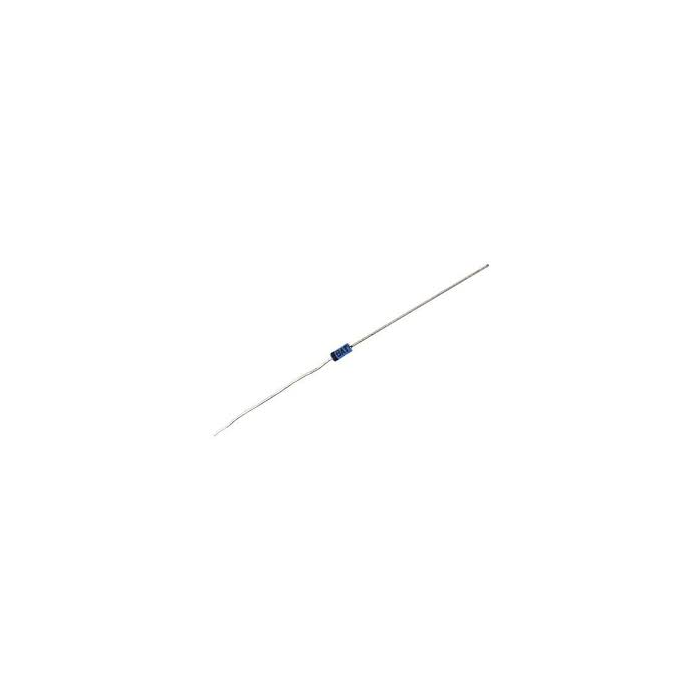

1IN 4348 Diode
1IN 4348 Diode:
The 1N4348 is a Zener diode commonly used for voltage regulation and surge protection in electronic circuits. With a Zener voltage of 4.7V, it provides stable voltage clamping and is typically used in low-voltage power supply applications and as a voltage reference in signal conditioning circuits.
Specifications:
- Zener Voltage (VZ): 4.7V
- Power Dissipation (PD): 1W
- Forward Voltage (VF): 1.1V at 20mA
- Reverse Current (IR): 5µA at 4.7V
- Package Type: DO-41 (Axial)
- Pins: 2
- Operating Temperature Range: -55°C to +150°C
- Polarity: Cathode marked with a band
SKU | DIO-0060-B02 |
---|
