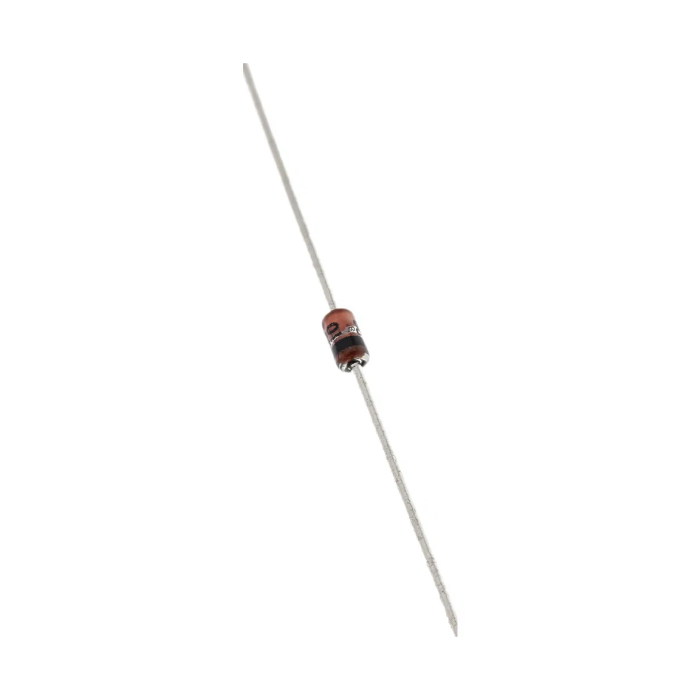

1N916 100V 200Ma (10Pcs)
1N916 100V 200Ma:
The 1N916 is a high-speed, small-signal switching diode designed for use in high-frequency applications. It is ideal for signal processing, switching, and general-purpose rectification in low-power electronic circuits.
Specifications:
- Reverse Voltage (VR): 100V
- Forward Current (IF): 200mA
- Forward Voltage Drop (VF): 1.0V at 20mA
- Reverse Recovery Time (trr): 4ns
- Peak Surge Current (IFSM): 500mA
- Reverse Leakage Current (IR): 25nA at 20V
- Package Type: DO-35 (Axial, Through-hole)
- Operating Temperature Range: -65°C to +200°C
- Polarity: Cathode marked with a band
