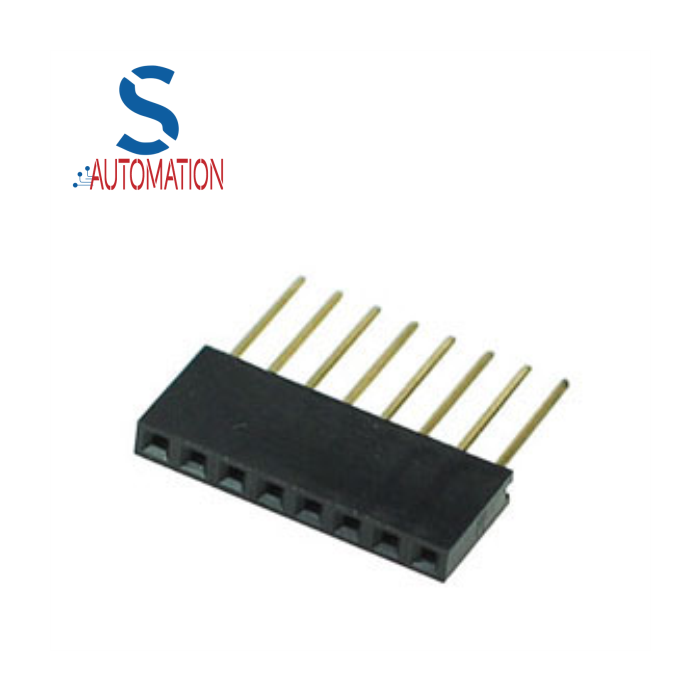

2.54MM PITCH 8 WAY 1 ROW STRAIGHT PCB SOCKET T/H SOLDER TERMINATION
PC104 long row female 2.54mm header 8 Way:
- A 2.54mm pitch, 8-way, 1-row straight PCB socket connects to a pin header by having 8 receptacles that receive the pins.
- It is mounted through holes on a PCB and soldered for a secure connection, allowing power and signal transfer between components.
- This setup facilitates modular connections for easy assembly and disassembly.
Technical Data:
- Pitch: 2.54mm (0.1 inch)
- Number of Pins: 8
- Rows: 1
- Mounting Type: Through hole
- Termination: Solder
- Contact Material: Typically copper alloy
- Current Rating: Up to 1A per pin (depending on application)
- Operating Temperature: -40°C to +105°C
- Insulation Resistance: ≥ 1000 MΩ at 500V DC
