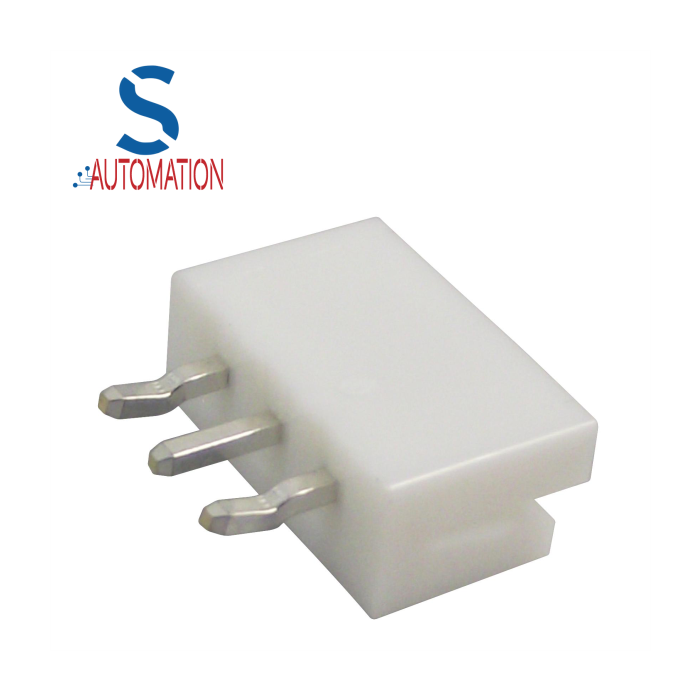

2.5mm Pitch, 3 Way, 1 Row, Straight PCB Header, Through Hole
| Series | XH |
| Series Number | B3B |
| Pitch | 2.5mm |
| Number of Contacts | 3 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Connector System | Wire to Board |
| Termination Method | Solder |
| Contact Plating | Tin |
| Type | Wire to Board |
| Contact Material | Brass |
| Current Rating | 3A |
| Voltage Rating | 250 V ac/dc |
XH Shrouded Header These XH Series Box-Type Shrouded Headers are available in Top Entry and Side Entry configurations. The wafer material of these XH Series Box-Type Shrouded Headers is PA66 with a rating of UL 94V-0, colour is natural (White). Posts are Tin plated Brass for these XH Series Box-Type Shrouded Headers.
