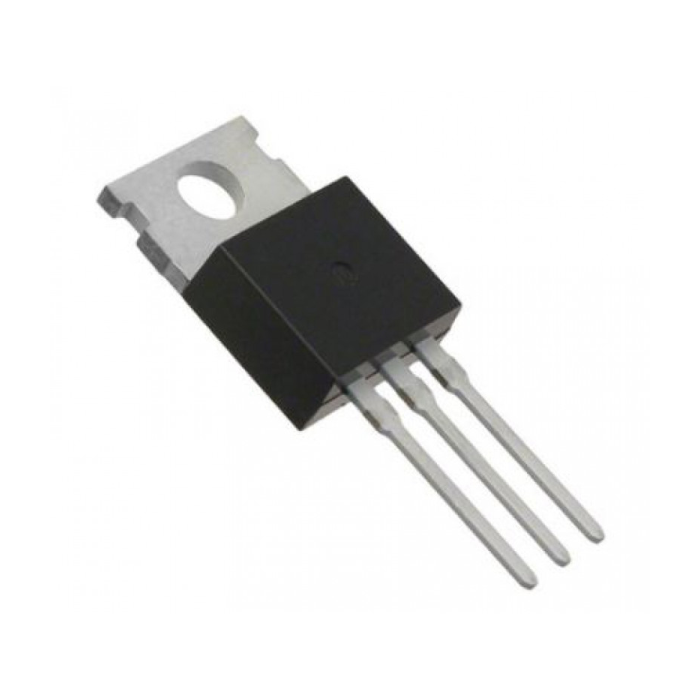

1IRF540NPBF N-Channel MOSFET 28A 100V HEXFET 3-Pin TO-220AB Infineon
Description:
- The N-channel-powered IRF540 MOSFET is utilized for both amplification procedures and extremely quick switching operations.
- It runs in the mode of improvement.
- It is more sensitive than a typical transistor because of its relatively high input impedance.
- Switching regulators, relay drivers, switching converters, motor drivers, high-speed power switching drivers, and many more applications are possible for it.
Features:
- Drain-to-Source Breakdown Voltage: 100V
- Gate-to-Source Breakdown Voltage: ± 20V
- Continuous Drain Current: ± 28A
- Minimum Operating Temperature: -55°C
- Maximum Operating Temperature: 175°C
- 2mm 8 Way
| SKU | MOS-0012-G12 |
|---|
