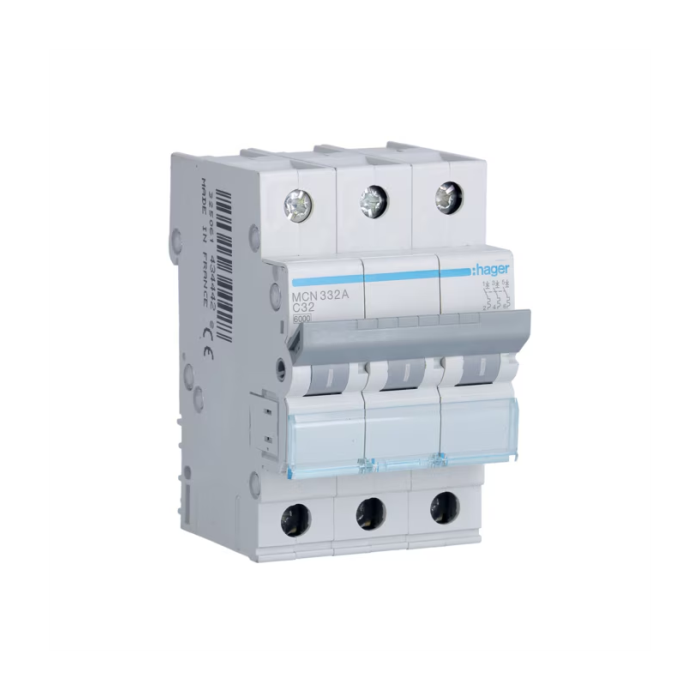

32A 3P 6kA C-Curve MCB
Description:
The 32A 3P 6kA C-Curve MCB is a miniature circuit breaker (MCB) designed for overcurrent protection in electrical installations. It features a C-curve tripping characteristic, making it suitable for general-purpose loads with moderate inrush currents.
Specifications:
- Rated Current: 32A
- Number of Poles: 3P (Three-Pole)
- Breaking Capacity: 6kA (IEC 60898-1)
- Tripping Curve: C-Curve (moderate inrush current tolerance)
- Rated Operational Voltage: 400V AC
- Rated Insulation Voltage: 500V
- Impulse Withstand Voltage: 4000V
- Frequency: 50/60 Hz
- Mounting Type: DIN Rail
