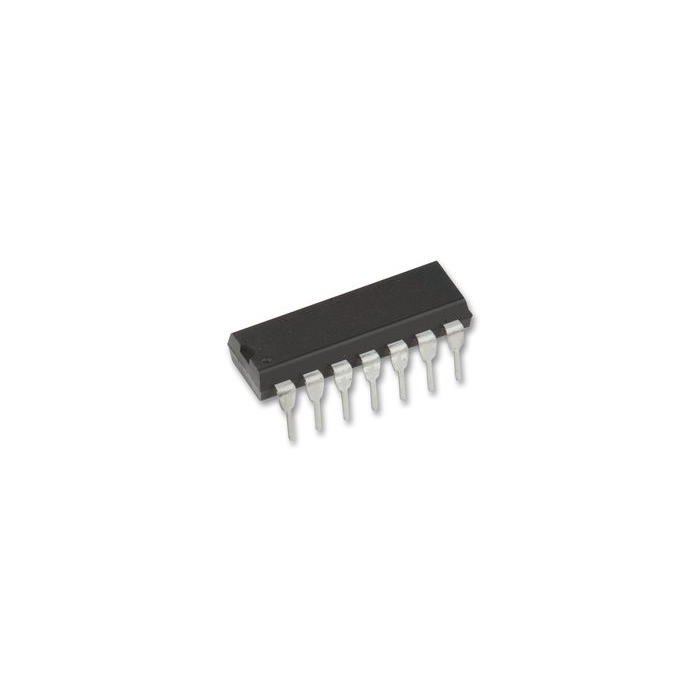

339N Quad Comparator 14 PIN
Description:
- The LM339N is a quad comparator, which means it has four separate voltage comparators in a single 14-pin package.
- These comparators are intended to work with a single power supply, although they can also accept dual supplies.
- This comparator is extremely versatile and is commonly used in industrial and consumer electronics for precise voltage comparisons.
Specifications:
- Supply Voltage Range: 2V to 36V (single supply) or ±1V to ±18V (dual supply).
- Supply Current: 1.1mA.
- Input Offset Voltage: 2mV, 5mV (maximum).
- Input Offset Current: ±5nA.
- Input Bias Current: 25nA.
- Common Mode Rejection Ratio (CMRR): 70dB.
- Power Supply Rejection Ratio (PSRR): 85dB.
- Large Signal Voltage Gain: 200V/mV.
- Output Voltage Swing: 0V to +Vcc - 1.5V.
- Bandwidth (Unity-Gain): 2MHz.
- Slew Rate: 0.3 V/µs.
- Operating Temperature Range: 0°C to +70°C (commercial), -40°C to +85°C (industrial), -55°C to +125°C (military).
