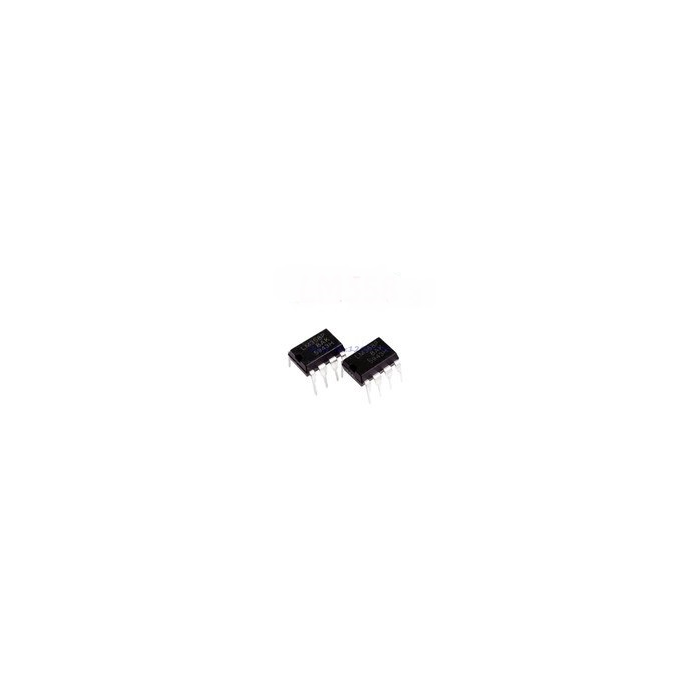

358P Dual Low Power Opamp 8pin
Description:
- The LM358P is a low-power dual operational amplifier that integrates two separate, high-gain, internally frequency-compensated op-amps into a single 8-pin DIP chip.
- It is intended to run from a single power supply over a wide voltage range, making it useful for several applications.
Specifications:
- Supply Voltage Range: 3V to 36V (single supply) or ±1.5V to ±18V (dual supply).
- Supply Current: 0.5mA per amplifier.
- Input Offset Voltage: 2mV, 7mV (maximum).
- Input Offset Current: 2nA.
- Input Bias Current: 20nA.
- Common Mode Rejection Ratio (CMRR): 70dB.
- Power Supply Rejection Ratio (PSRR): 65dB.
- Large Signal Voltage Gain: 100dB.
- Output Voltage Swing: 0V to (Vcc - 1.5V).
- Bandwidth (Unity-Gain): 1 MHz.
- Slew Rate: 0.3 V/µs.
- Operating Temperature Range: 0°C to +70°C (commercial), -40°C to +85°C (industrial), -55°C to +125°C (military).
