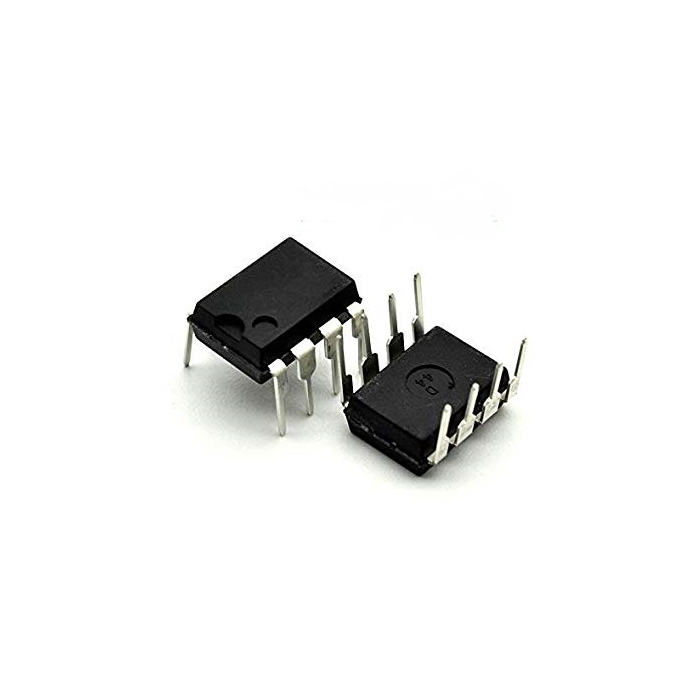

393N-8 Comparator Dual 5MV LM2903 8pin
Description:
- The LM393N-8 and LM2903-8 are dual low-power comparators that can run on either a single or two power supplies.
- M393N and LM2903 devices are made up of two independent precision voltage comparators.
- These comparators are designed to run on a single power source across a wide voltage range.
- Dual-supply operation is conceivable, and the low power-supply current drain is unaffected by the voltage magnitude.
Specifications:
- Supply Voltage Range: 2V to 36V (single supply) or ±1V to ±18V (dual supply).
- Supply Current: 0.4mA per comparator.
- Input Offset Voltage: 2mV, 5mV (maximum).
- Input Offset Current: 5nA.
- Input Bias Current: 25nA.
- Common Mode Rejection Ratio (CMRR): 70dB.
- Power Supply Rejection Ratio (PSRR): 85dB.
- Voltage Gain: 200V/mV.
- Output Voltage Swing: 0V to (Vcc - 1.5V).
- Response Time: 1.3µs.
- Operating Temperature Range: 0°C to +70°C (commercial), -40°C to +85°C (industrial), -55°C to +125°C (military).
