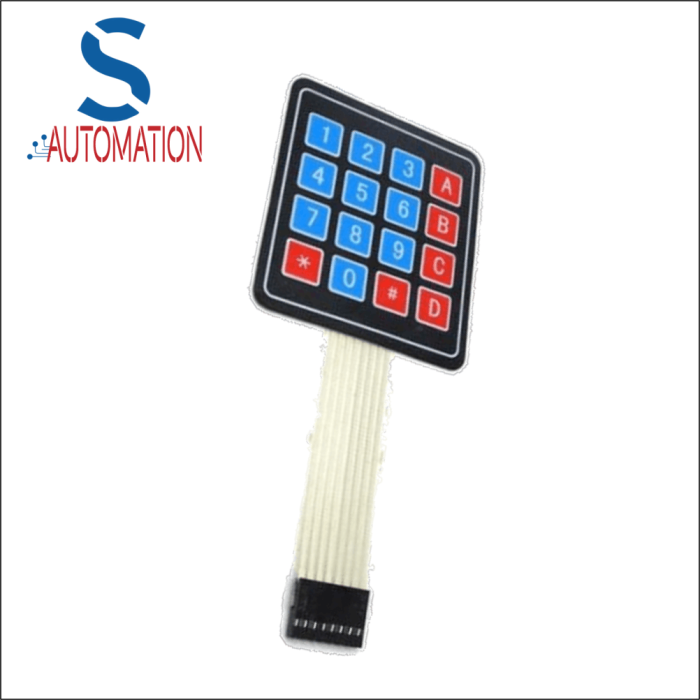

Matrix Array/Matrix Keyboard 16 Key Membrane Switch Keypad for arduino

ZAR 30.04 ZAR 26.12

In stock

SKU

ARD-0109-L01

Description:

The 4x4 Matrix Array 16 Key Membrane Switch Keypad Keyboard is a high-performance, durable input device designed for a wide range of electronics projects, including Arduino, AVR, and Raspberry Pi platforms. This keypad features a 4x4 matrix layout, offering 16 keys for user input, ideal for applications requiring efficient and reliable manual input.

Key features:

Layout: 4x4 matrix array with 16 keys
Contact Resistance: 500Ω (maximum)
Insulation Resistance: 100MΩ at 100V
Key Operating Force: 150-200g, providing a tactile feel for accurate input
Rebound Time: 1 ms for quick response
Life Span: 100 million key presses for long-term durability
Operating Temperature: Up to 60°C, suitable for a variety of environments
Circuit Rating: 35V DC, 100mA, 1W
Switch Travel: 0.6 - 1.5mm with a tactile touch type
Vibration Resistance: 20G, max. (10-200Hz) per MIL-SLD-202 M204 Condition B
Operating Pressure: 170-397g (6-14oz), providing a comfortable touch feeling
Connector: Uses an 8-pin, 2.54mm pitch female connector for easy integration with microcontrollers
Dielectric Strength: 250VRms at 50-60Hz for 1 minute

Additional features:

Ease of Use: Clearly labeled keys for intuitive operation
Flexibility: Membrane design for easy mounting in various enclosures and spaces
Reliability: Built to endure millions of key presses with consistent performance
Compatibility: Works seamlessly with Arduino, AVR, Raspberry Pi, and other microcontroller platforms

Applications:

Embedded Systems: Ideal for creating user interfaces in embedded systems and devices
DIY Electronics: Perfect for hobbyists and makers developing custom electronics
Prototyping: Great for engineers testing and developing new projects
Robotics: Useful for controlling robots and automated systems
Home Automation: Excellent for user input in home automation projects
