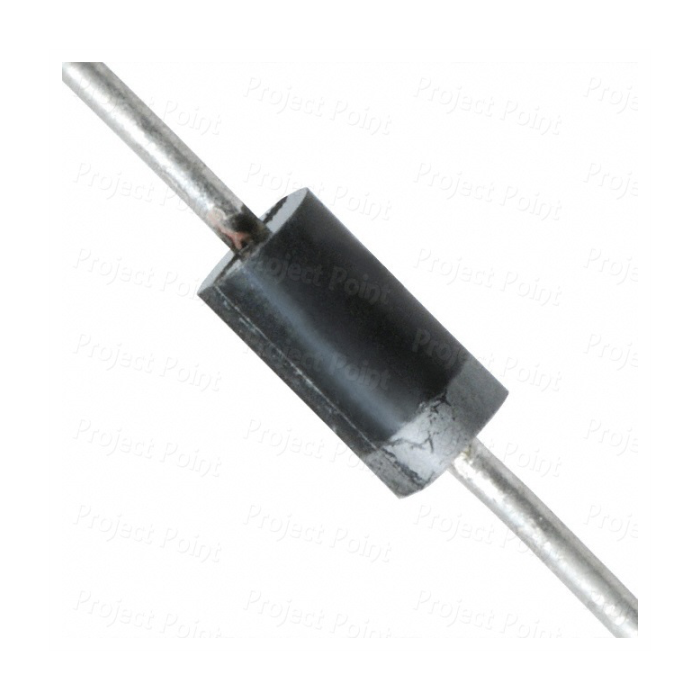

400V High Conductance 1A Diode
400V High Conductance 1A Diode:
A 400V high-conductance 1A diode is designed for general-purpose rectification in power circuits. It can handle up to 1A of forward current and is suitable for AC-to-DC conversion, freewheeling diodes, and polarity protection in medium-power applications.
Specifications:
- Reverse Voltage (VR): 400V
- Forward Current (IF): 1A
- Forward Voltage Drop (VF): 1.1V at 1A
- Peak Surge Current (IFSM): 30A
- Reverse Leakage Current (IR): 5µA at 400V
- Reverse Recovery Time (trr): 2µs
- Package Type: DO-41 (Axial, Through-hole)
- Operating Temperature Range: -55°C to +150°C
- Polarity: Cathode marked with a band
