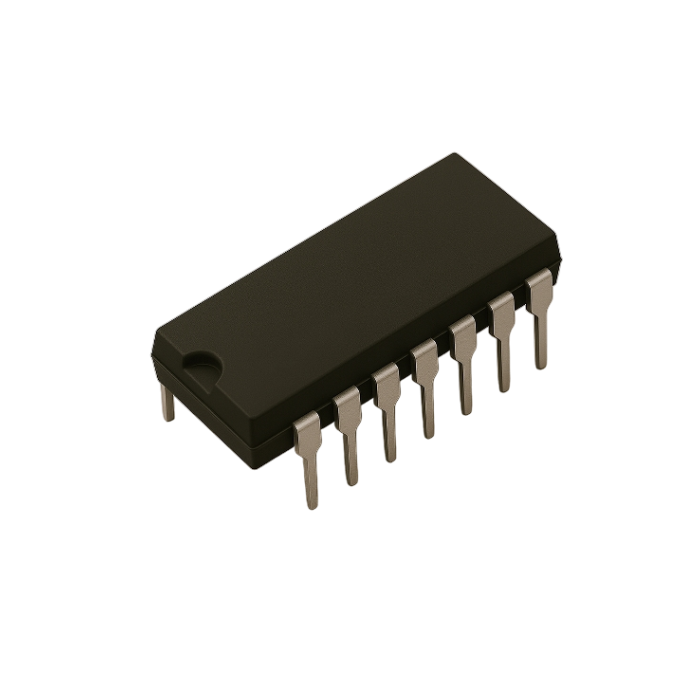

4012BCL Integrated Circuit 14Pin
Description:
The 4012BCL is most likely a variant of the CD4012B, a classic dual 4-input NAND gate IC built using CMOS technology. It’s part of the 4000-series logic family and is known for its wide voltage range, low power consumption, and high noise immunity, making it a staple in digital logic design.
Specifications:
- Function: Dual 4-input NAND gate
- Logic Family: CMOS (CD4000 series)
- Inputs per Gate: 4
- Number of Gates: 2
- Supply Voltage Range: 3V to 18V
- Input Type: Standard CMOS
- Output Type: Push-pull, TTL-compatible
- Propagation Delay: ~60 ns at 10 V
- Input Current: Max 1 µA at 18 V
- Noise Margin:
-1 V at VDD = 5 V
-2.5 V at VDD = 15 V - Package: 14-pin DIP (Plastic Dual In-line Package)
- Operating Temperature: –55°C to +125°C
| SKU | INC-0403-C09 |
|---|
