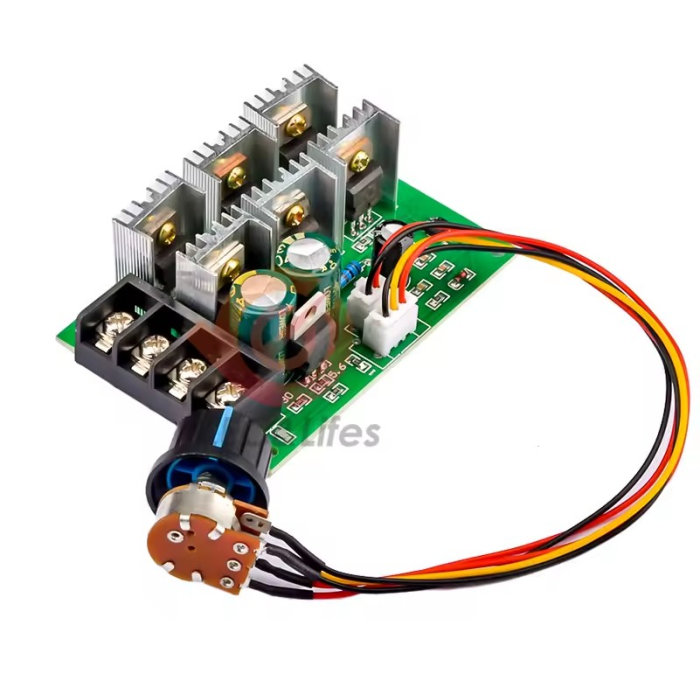

40A PWM DC Speed Control, Control 9-50VDC. 2000W
Description
40A PWM DC Speed Control, Control 9-50VDC. 2000W.40A PWM DC Speed Control
Specifications Input voltage: DC9-50V Output Voltage: Linear under load Output limit current: 40A (20A for long-term use.
Keep the module unobstructed for heat dissipation) Limit power: 2000W
Specifications
- Input voltage: DC9-50V
- Output Voltage: Linear under load
- Output limit current: 40A (20A for long-term use. Keep the module unobstructed for heat dissipation)
- Limit power: 2000W
- Speed regulation type: flow regulation
- Speed regulation mode: potentiometer (linear) with switch
- Speed regulation duty cycle range: 0-100%
- Control frequency: 25KHZ
- Wiring Type: Barrier Terminal Block
- Knob cable length: 20CM
- Product Net Yield: 135g
- Motherboard according to installation size: length * width 83MM * 56MM * 26MM
