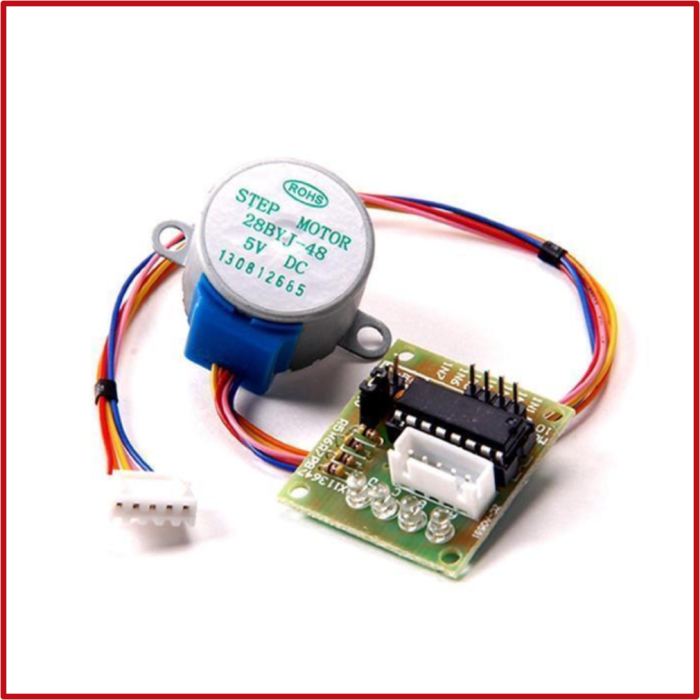

5V Stepper Motor With ULN2003 Stepper Motor Driver Board
5V Stepper Motor With ULN2003 Driver Board
Deceleration Stepper Motor:
- Diameter : 28mm.
- Voltage : 5V.
- Step Torque Angle : 5.625/64.
- Reduction Ratio : 1/64.
- DC Resistance : 200±7% (25).
- Insulation Resistance : >10M (500V).
- Dielectric Strength : 600V AC / 1mA / 1s.
- Insulation Grade : A.
- No-load Pull in Frequency : >600Hz.
- No-load Pull out Frequency : >1000Hz.
- Pull in Torque : >34.3mN.m(120Hz).
- Detent Torque : >34.3mN.m.
- Temperature Rise : <40K(120Hz).
- Noise : <40dB (120Hz, No load, 10cm).
- Board Size : Approx. 29 x 21 mm.
| SKU | MOT-0067-000 |
|---|
