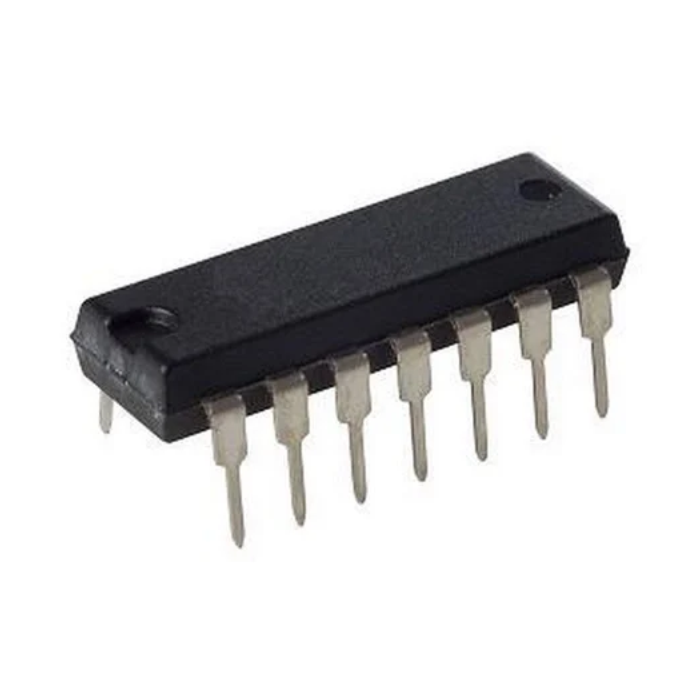

74LS00N Quad 2-Input NAND Gate 14-pin PDIP
Description:
- The 74LS00N has four separate NAND gates, each with two inputs, designed to execute the logic NAND function.
- This IC is commonly used in digital electronics to accomplish fundamental logic operations.
- TTL Outputs: Compatible with transistor-transistor logic (TTL) outputs.
- ESD protection exceeds 3500 volts.
- Applications:
- Implementing fundamental logic functions in digital circuitry.
- Inverters (by reconfiguring NAND gates).
- Digital signal processing.
- Used in computers, laptops, servers, and networking equipment.
Specifications:
- Function: Quad 2-input NAND gate.
- Package Type: 14-Pin PDIP (Plastic Dual In-line Package).
- Operating Voltage: 4.75V to 5.25V.
- Maximum Supply Voltage: 7V.
- Maximum Output Current: 8mA per gate.
- Input and Output Voltage Levels:
- VIL (max): 0.8V.
- VIH (min): 2V.
- VOL (max): 0.4V.
- VOH (min): 2.7V.
- Typical Propagation Delay: 15ns per gate.
- Rise and Fall Time: Typical 15ns.
- Operating Temperature Range: 0°C to 70°C.
