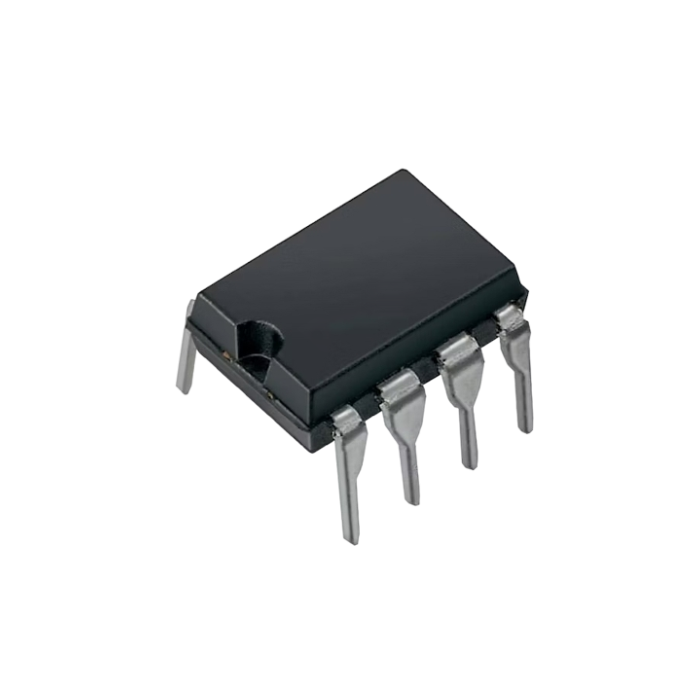

75452B10 Integrated Circuit 8Pin
Description:
The 75452B10, commonly referred to as the SN75452B, is a dual peripheral driver IC from Texas Instruments, designed for high-speed switching and interfacing TTL logic with high-voltage loads. It integrates two NAND gate inputs with open-collector outputs, making it ideal for driving relays, lamps, or other inductive loads. With diode-clamped TTL-compatible inputs and robust output stages, it ensures reliable operation in digital control systems. Its compact 8-pin DIP package and wide voltage handling make it a versatile choice for interfacing logic-level signals with higher-voltage devices.
Specifications:
- Function: Dual peripheral driver with NAND logic inputs
- Logic Type: TTL-compatible
- Input Type: Diode-clamped TTL
- Output Type: Open-collector
- Number of Drivers: 2
- Output Voltage (Max): 30 V
- Switching Voltage (Max): 20 V
- Peak Output Current: 500 mA
- Typical Output Current per Channel: 300 mA
- Input Voltage (Low): 0.8 V max
- Input Voltage (High): 2 V min
- Delay Time: 26 ns
- Supply Voltage Range: 4.75 V to 5.25 V
- Operating Temperature Range: 0°C to 70°C
- Package: 8-PDIP (Plastic Dual In-line Package)
- Mounting Type: Through-hole
| SKU | INC-0363-C09 |
|---|
