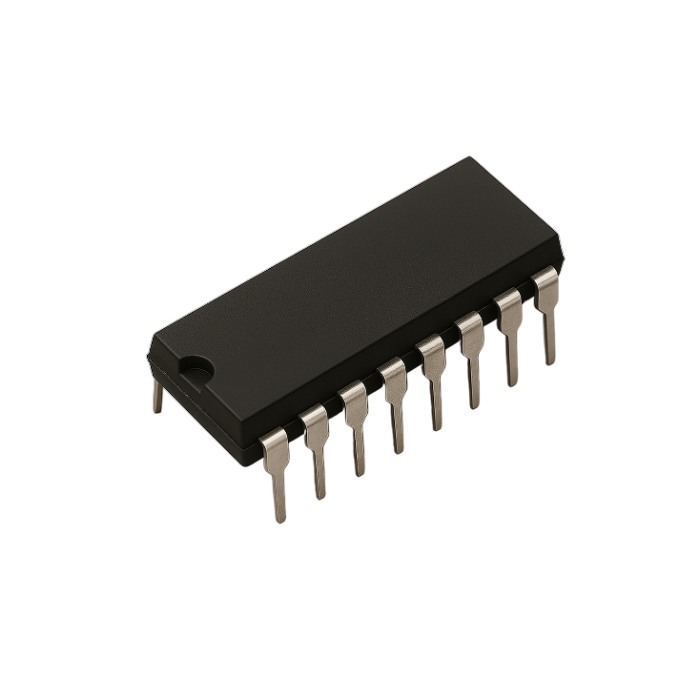

9334PC Integrated Circuit 16PIN
Description:
The 9334PC is a D-Type Addressable Latch integrated circuit manufactured by National Semiconductor. It is designed for logic control applications, offering precise data storage and retrieval in digital systems.
Specifications:
- Logic Type: D-Type Addressable Latch
- Circuit Configuration: 3-to-8 decoding
- Number of Channels: 1
- Supply Voltage: 4.75V to 5.25V
- Output Type: Standard logic output
- Current Output (High/Low): 800µA / 16mA
- Operating Temperature Range: 0°C to 70°C
- Mounting Type: Through-hole
| SKU | INC-0318-C09 |
|---|
