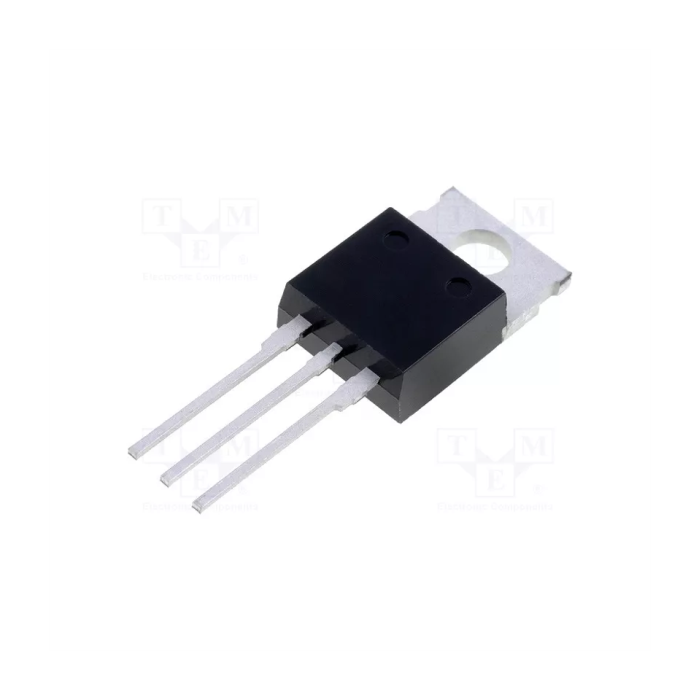

9N90 N-channel 900V 9A 200W
Description:
The MOROCCO 9N90 is an N-channel power MOSFET designed for high-voltage and high-efficiency applications, such as power supplies, motor drivers, and electronic circuits requiring robust switching capabilities. It features low on-resistance and fast switching speeds, making it suitable for both high-frequency and high-power applications.
Specifications:
- Type: N-Channel MOSFET
- Drain-Source Voltage (Vds): 900V
- Continuous Drain Current (Id): 9A
- Gate-Source Voltage (Vgs): ±30V
- On-Resistance (Rds(on)): 0.85Ω
- Power Dissipation (Pd): 200W
- Maximum Junction Temperature (Tj): 150°C
- Package: TO-220
- Applications: High-voltage power supply, motor control, and lighting systems.
