Specifications:

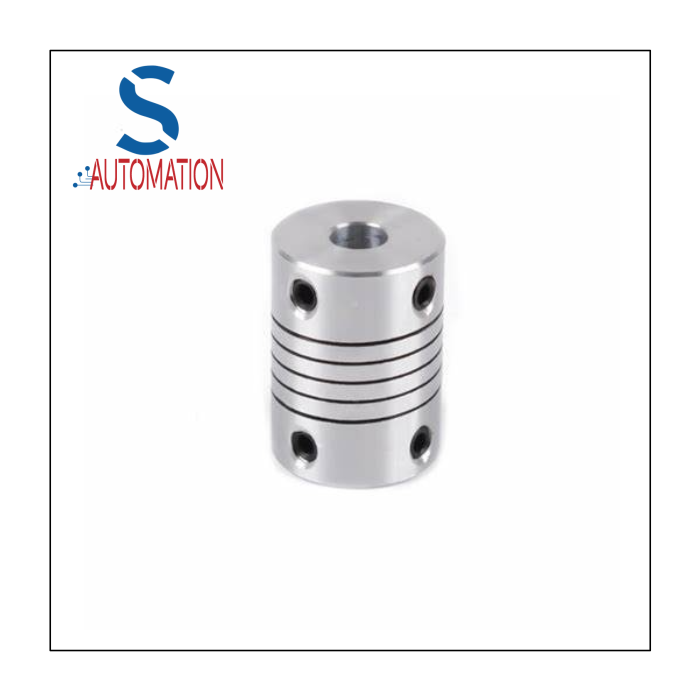

• Type: Elastic (flexible) shaft coupling
• Material: Made of high-strength aluminum alloy, known for its durability, lightweight properties, and resistance to corrosion.
• Dimensions:
• Bore Diameter:
• Side A: 3 mm
• Side B: 5 mm
• Outer Diameter: 18 mm
• Length: 25 mm
• Elastic Insert: Features a polyurethane elastic element that absorbs vibrations, compensates for slight misalignments, and reduces mechanical noise.
• Set Screws: Equipped with 2 set screws per bore to securely attach the coupling to the shafts.
• Flexibility: Accommodates angular, axial, and radial misalignments, ensuring smooth and accurate power transmission.
• Performance:
• Torque Capacity: Typically supports up to 1 Nm of torque.
• Maximum Speed: Supports speeds up to 8,000 RPM.
• Misalignment Compensation:
• Angular: Up to 1°
• Radial: Up to 0.2 mm
• Axial: Up to 0.3 mm
• Commonly used in:
• 3D printers (connecting stepper motors to lead screws or threaded rods)
• CNC machines
• Robotics
• Small automation systems
• Ideal for applications requiring low backlash, vibration damping, and precise torque transfer.
