Specifications:

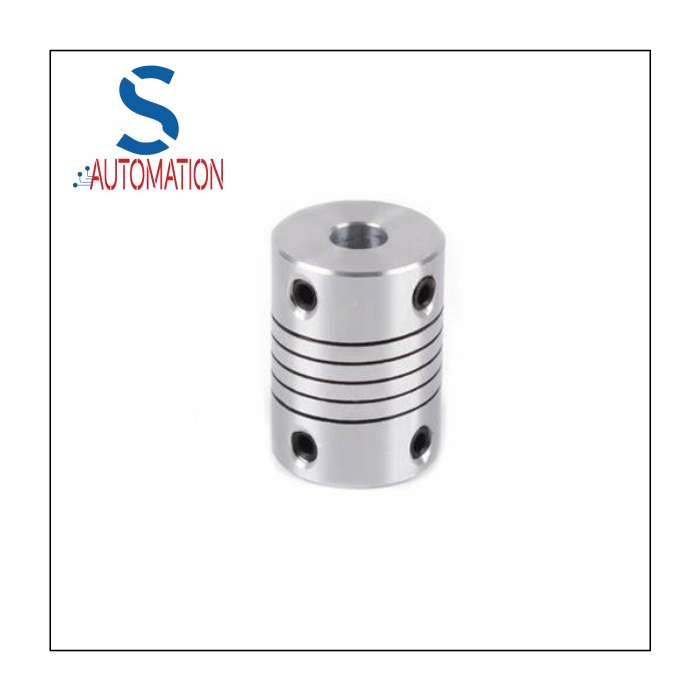

• Type: Elastic (flexible) shaft coupling.
• Material: Constructed from high-strength aluminum alloy, offering a lightweight design, durability, and resistance to corrosion.
• Dimensions:
• Bore Diameter:
• Side A: 3 mm.
• Side B: 6.35 mm (1/4 inch).
• Outer Diameter: 18 mm.
• Length: 25 mm.
• Elastic Insert: Features a polyurethane or rubber elastic element that absorbs vibrations, compensates for misalignments, and reduces mechanical noise.
• Set Screws: Equipped with 2 set screws per bore to securely attach the coupling to the shafts.
• Flexibility: Designed to handle angular, axial, and radial misalignments, providing smooth and efficient torque transmission.
• Performance:
• Torque Capacity: Up to 1.5 Nm of torque.
• Maximum Speed: Capable of handling speeds up to 8,000 RPM.
• Misalignment Compensation:
• Angular: Up to 1°.
• Radial: Up to 0.2 mm.
• Axial: Up to 0.3 mm.
• Commonly used in:
• 3D printers (connecting stepper motors to lead screws or threaded rods).
• CNC machines.
• Robotic systems.
• Small automation devices.
• Ideal for applications requiring low backlash, shock absorption, and vibration damping.
