Specifications:

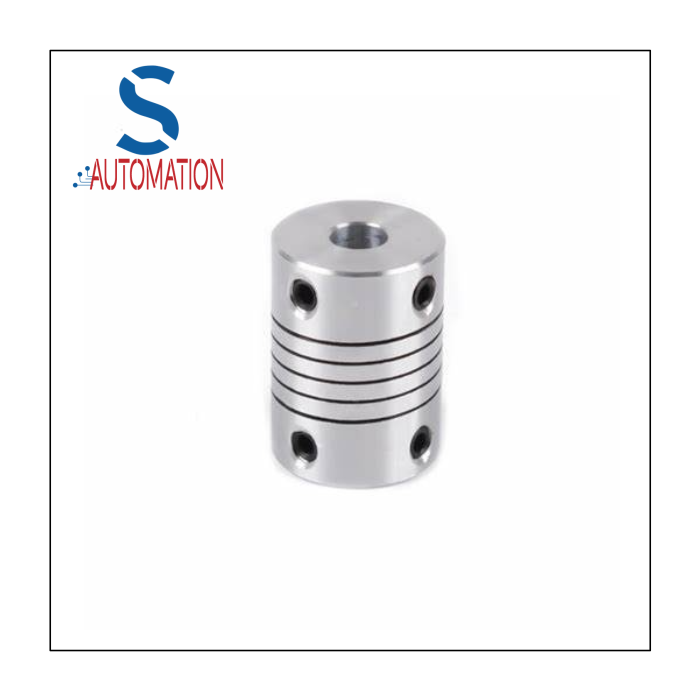

• Type: Elastic (flexible) shaft coupling.
• Material: Constructed from high-strength aluminum alloy for lightweight durability and corrosion resistance.
• Dimensions:
• Bore Diameter:
• Side A: 4 mm.
• Side B: 6.35 mm (1/4 inch).
• Outer Diameter: 19 mm.
• Length: 25 mm.
• Elastic Insert: Contains a polyurethane or rubber elastic element, which provides vibration absorption and compensates for slight shaft misalignments.
• Set Screws: Usually equipped with 2 set screws per bore to securely clamp the coupling onto the shafts.
• Flexibility: Accommodates angular, axial, and radial misalignments, ensuring smooth and accurate power transmission.
• Performance:
• Torque Capacity: Handles up to 1.5 Nm of torque.
• Maximum Speed: Supports speeds up to 10,000 RPM.
• Misalignment Compensation:
• Angular: Up to 1°.
• Radial: Up to 0.2 mm.
• Axial: Up to 0.3 mm.
• Commonly used in:
• 3D printers (connecting stepper motors to lead screws).
• CNC machines.
• Robotic arms.
• Small automation systems.
• Ideal for precision applications requiring low backlash, shock absorption, and vibration damping.
