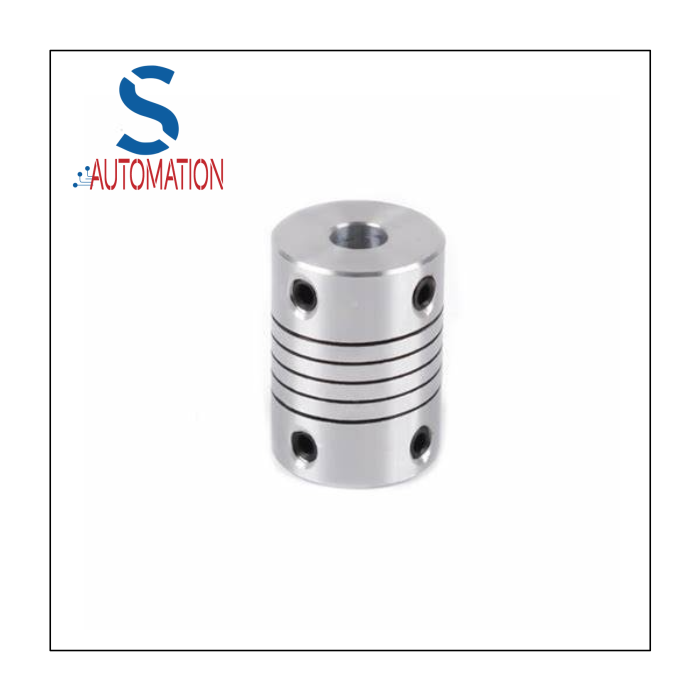

Material: Constructed from high-strength aluminum alloy, providing durability, lightweight construction, and resistance to corrosion.
Dimensions:
Bore Diameter:
Side A: 4 mm
Side B: 6 mm.
Outer Diameter: 19 mm.
Length: 25 mm.
Elastic Insert: Features a polyurethane or rubber elastic element, which absorbs vibrations, compensates for slight shaft misalignments, and reduces mechanical noise.
Set Screws: 2 Set screws per bore for secure attachment to the shafts.
Flexibility: Accommodates angular, axial, and radial misalignments, ensuring smooth, efficient power transmission.
Performance:
Torque Capacity: Typically handles up to 2 Nm of torque.
Maximum Speed: Supports speeds up to 10,000 RPM.
Misalignment Compensation:
Angular: Up to 1°.
Radial: Up to 0.2 mm.
Axial: Up to 0.3 mm.
Commonly used in:
3D printers (to connect stepper motors to lead screws or threaded rods).
CNC machines.
Robotics.
Small automation systems.
Ideal for systems requiring low backlash, vibration damping, and precise torque transfer.
