Specifications:

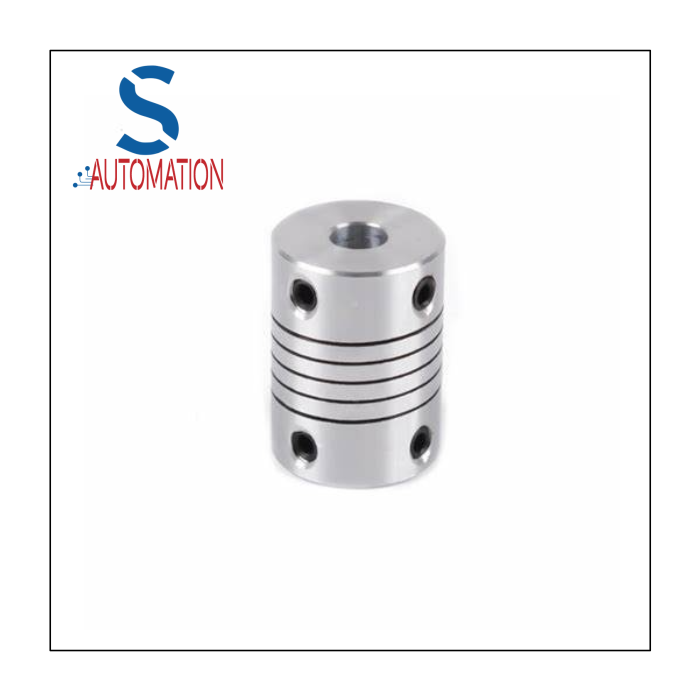

• Type: Elastic (flexible) shaft coupling.
• Material: High-strength aluminum alloy, known for its durability, lightweight properties, and corrosion resistance.
• Dimensions:
• Bore Diameter:
• Side A: 6.35 mm (1/4 inch).
• Side B: 10 mm.
• Outer Diameter: 19 mm.
• Length: 25 mm.
• Elastic Insert: Contains a polyurethane elastic element that absorbs vibrations, reduces noise, and compensates for small misalignments.
• Set Screws: Usually equipped with 2 set screws per bore for secure attachment to shafts.
• Flexibility: Can accommodate angular, axial, and radial misalignments for smoother and more accurate motion transmission.
• Performance:
• Torque Capacity: Handles up to 2.5 Nm of torque.
• Maximum Speed: Supports speeds up to 10,000 RPM.
• Misalignment Compensation:
• Angular: Up to 1°.
• Radial: Up to 0.2 m.
• Axial: Up to 0.3 mm.
• Commonly used in:
• 3D printers (e.g., connecting stepper motors to lead screws or threaded rods).
• CNC machines.
• Robotic arms.
• Small automation systems.
• Ideal for applications requiring low backlash, shock absorption, and vibration damping to protect mechanical components and improve system reliability.
