Specifications:

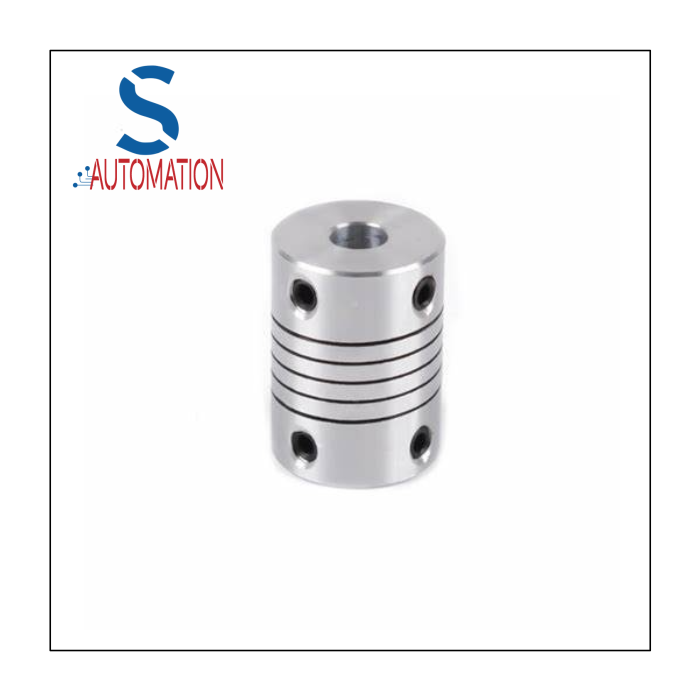

• Type: Elastic (flexible) shaft coupling.
• Material: Made from high-strength aluminum alloy, providing a lightweight, durable construction with excellent resistance to corrosion.
• Dimensions:
• Bore Diameter:
• Side A: 6 mm.
• Side B: 7 mm.
• Outer Diameter: 19 mm.
• Length: Typically 25 mm.
• Elastic Insert: Contains a polyurethane or rubber elastic element that absorbs shock, reduces noise, and compensates for slight misalignments between the connected shafts.
• Set Screws: Equipped with 2 set screws per bore for secure attachment to the shafts.
• Flexibility: Accommodates angular, axial, and radial misalignments, ensuring smooth motion transmission.
• Performance:
• Torque Capacity: Typically supports up to 2.5 Nm of torque.
• Maximum Speed: Capable of handling speeds up to 10,000 RPM.
• Misalignment Compensation:
• Angular: Up to 1°.
• Radial: Up to 0.2 mm.
• Axial: Up to 0.3 mm.
• Commonly used in:
• 3D printers (connecting stepper motors to lead screws or threaded rods).
• CNC machines.
• Robotics.
• Small automation systems.
• Ideal for precision applications requiring low backlash, vibration damping, and reliable torque transfer.
