Specifications:

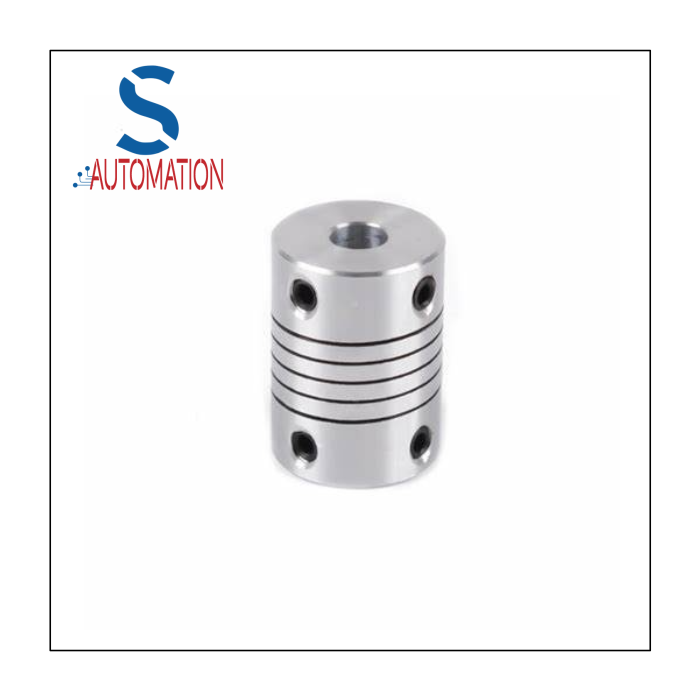

• Type: Elastic (flexible) shaft coupling.
• Material: Made from high-strength aluminum alloy, offering durability, lightweight construction, and resistance to corrosion.
• Dimensions:
• Bore Diameter:
• Side A: 7 mm.
• Side B: 8 mm.
• Outer Diameter: 19 mm.
• Length: 25 mm.
• Elastic Insert: Contains a flexible element that absorbs vibrations, reduces noise, and compensates for small misalignments.
• Set Screws: Equipped with 2 set screws per bore to firmly secure the coupling to the shafts.
• Flexibility: Can accommodate angular, axial, and radial misalignments, ensuring smooth and accurate motion transfer.
• Performance:
• Torque Capacity: Typically handles up to 2 Nm of torque.
• Maximum Speed: Supports speeds up to 10,000 RPM.
• Misalignment Compensation:
• Angular: Up to 1°.
• Radial: Up to 0.2 mm.
• Axial: Up to 0.3 mm.
• Commonly used in:
• 3D printers (e.g., connecting stepper motors to lead screws).
• CNC machines.
• Robotic systems.
• Small automation devices.
• Ideal for applications requiring precision, low backlash and vibration damping to protect motor and mechanical components.
