Specifications:

• Function: 8-bit universal shift/storage register

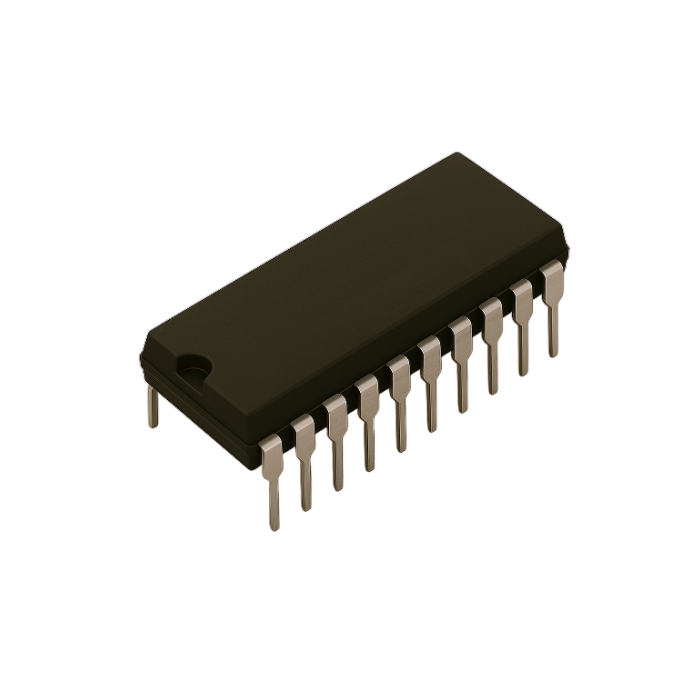

• Package: 20-pin PDIP (Plastic Dual In-line Package)
• Logic Family: LS (Low-power Schottky TTL)
  •Data Direction: Bidirectional (can shift left or right)
  •Inputs/Outputs: Parallel input/output with true outputs
  •Clocking: Positive-edge triggered
  •Clear Function: Synchronous clear
  •Propagation Delay: ~40ns
  •Supply Voltage: 4.75V to 5.25V
  •Max Supply Current: ~60mA
  •Operating Temperature: 0°C to +70°C
  •Applications:
  -Data buffering and storage
  -Serial-to-parallel or parallel-to-serial conversion
  -Microprocessor interfacing
  -Cascadable shift register chains
