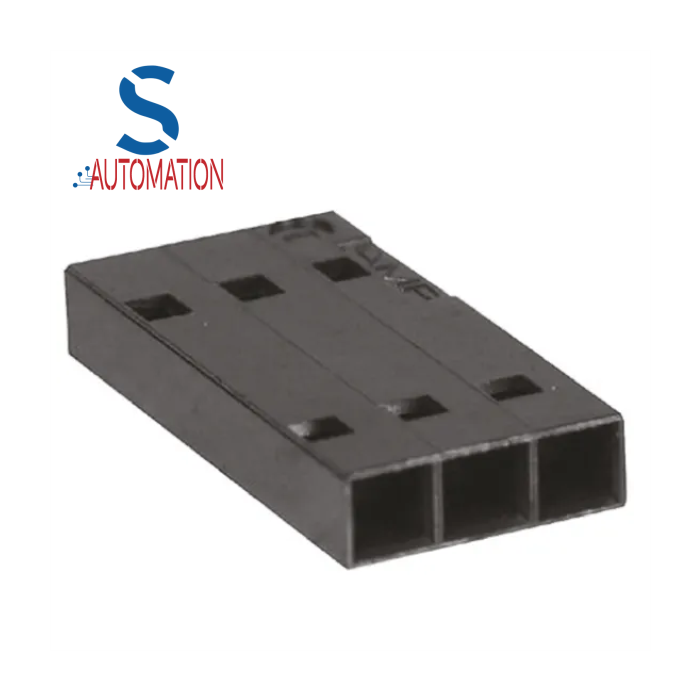

AMPMODU MTE, 2.54mm Pitch, 3 Way, 1 Row Female Connector Housing

ZAR 21.40 ZAR 18.61
In stock
SKU
CON-0085-G04

AMPMODU MTE 2.54mm Unloaded IDC Strip Form Plain Receptacle Housings

Single row plain style unloaded MTE IDC receptacle housings with 2.54mm centres supplied in strip form with 10 housings per strip segment. These single Row plain MTE IDC receptacle housings are made from 94V-0 rated black thermoplastic and are end to end or back to back stackable for open pin field applications.

AMPMODU MTE 2.54mm Unloaded IDC Strip Form Plain Receptacle Housings

Single row plain style unloaded MTE IDC receptacle housings with 2.54mm centres supplied in strip form with 10 housings per strip segment. These single Row plain MTE IDC receptacle housings are made from 94V-0 rated black thermoplastic and are end to end or back to back stackable for open pin field applications.

TE Connectivity AMPMODU MTE Interconnection System

AMPMODU MTE 2.54 mm pitch connector system for labour and cost saving mass termination of wires in wire-to-board and wire-to-wire applications. These MTE connectors are based on IDC (insulation displacement contact) technology allowing one-step assembly and eliminating the need for wire stripping saving both time and cost. Using production hand tooling these MTE IDC connectors can be quickly assembled to discrete wire. The AMPMODU MTE connector system consists of single row receptacle housings preloaded with IDC contacts and PCB headers. Coupling shrouds are also available which allow the ganging of connectors to form larger single row or double row connectors
