Araymond Powersnap 90B W/Grounding - Anti-Theft
‚ The ‚“PowAR SNAP 90B‚ is a fastener interface between standard PV modules and racking rails system
‚ The ‚“PowAR SNAP 90B‚ is composed of a single piece
‚ 4 ‚“PowAR SNAP 90B‚ attachments are required per module
‚ Access for dismounting from strut rails is done from modules BACK side ONLY
‚ Configuration attachment is 90 degree (longer module side is perpendicular with rails system) means
‚“Landscape‚ configuration

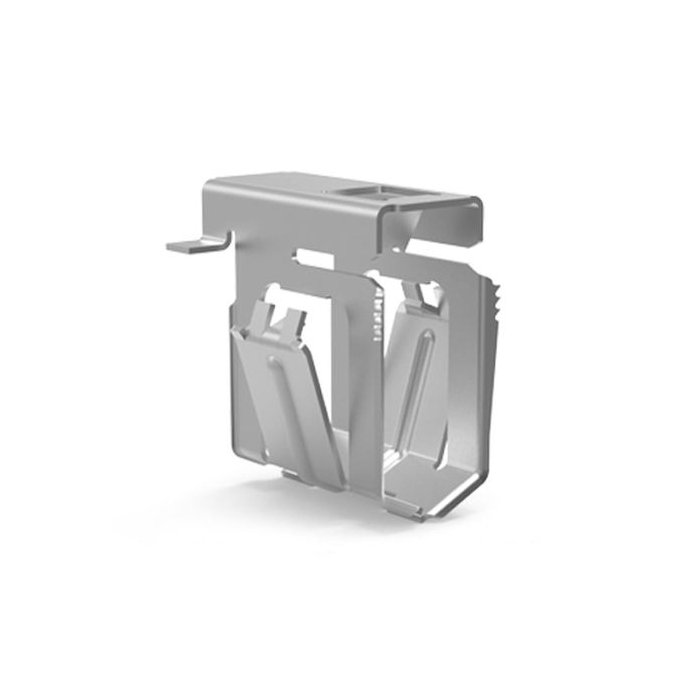

PowAR Snap is a one-piece attachment clip for framed solar modules. With this fastening solution, mounting PV panels for steel structures becomes easy. An anti theft removal tool is needed to remove clip after installation
‚ Quenched steel 1050-1065 45-50HRc for Hot Dip Galvanized rails
‚ Finishing : Hot Dip Galvanized
‚ Panel aluminum frame : fits for a thickness range from 1.5 to 2.5 mm and depth of 18.0 mm minimum
