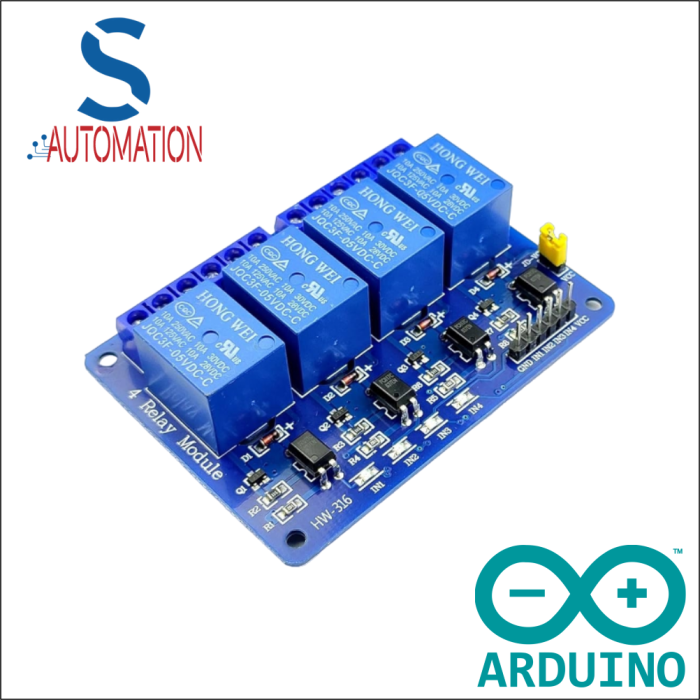

Arduino 4-channel 5V relay module

ZAR 63.53 ZAR 55.24
In stock
SKU
ARD-0060-M01

Arduino 4-channel 5V relay module

  • This is a 4-channel relay interface board with LOW Level 5V; each channel requires a driver current of 15-20mA.
  • It can be used to regulate a variety of high-current appliances and equipment.
  • High-current relays that operate on AC250V 10A or DC30V 10A are installed in it.
  • It features a conventional interface that a microcontroller may directly control.
  • For safety reasons, this module is optically isolated from the high voltage side.
  • It also avoids ground loops when interacting with microcontrollers.

Specification:

  • Digital output controllable
  • Compatible with any 5V microcontroller such as Arduino.
  • Rated through-current: 10A (NO) 5A (NC)
  • Control signal: TTL level
  • Max. switching voltage 250VAC/30VDC
  • Max. switching current 10A
  • Size: 76mm x 56mm x 17mm
