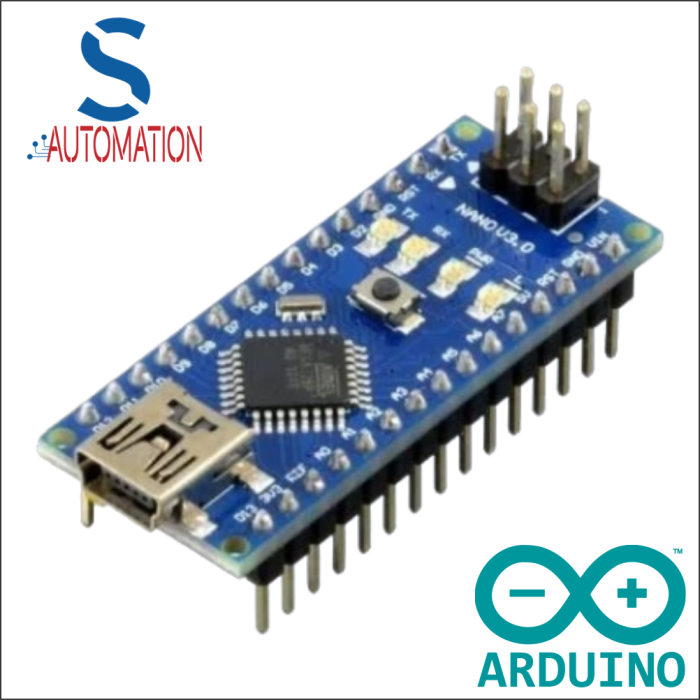

Arduino Nano V3.0 ATMEGA328P development board
Arduino Nano V3.0 ATMEGA328P development board
- Based on the ATmega328, the Arduino Nano is a compact, feature-rich, and breadboard-friendly board.
- With a different packaging, it offers nearly the same capabilities as the Arduino Duemilanove.
- It only loses a DC power jack and uses a Mini-B USB cable rather than a regular one.
Specifications:
- MCU: ATmega328
- Operating Voltage (logic level): 5V
- Input Voltage (recommended): 7-12V
- Input Voltage (limit): 6-20 V
- Digital I/O Pins: 14 of which 6 provide PWM output
- Analog Input Pins: 8
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32 KB (ATmega328) of which 2 KB used by bootloader
- SRAM: 2 KB (ATmega328)
- EEPROM: 1 KB (ATmega328)
- Clock Speed: 16 MHz
- Dimensions: 0.73″ x 1.70″
- This board uses the FT232RL serial chipset.
| SKU | ARD-0065-M01 |
|---|
