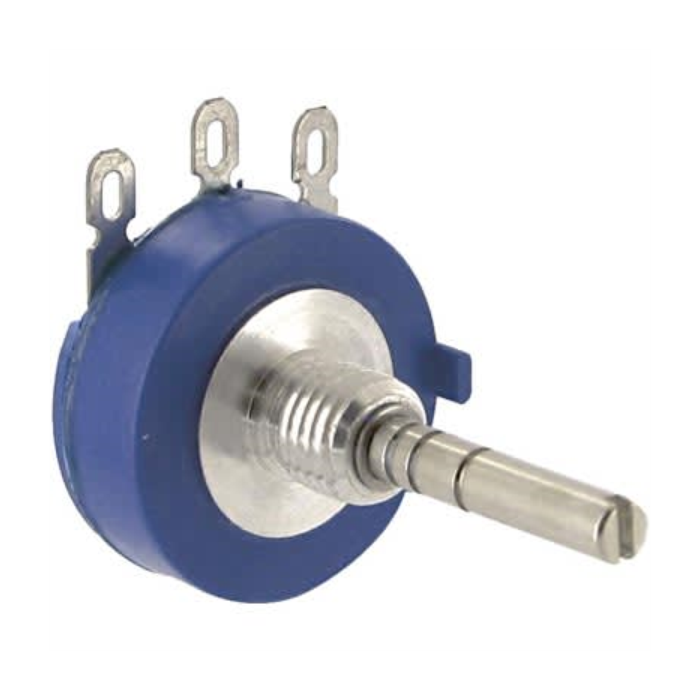

BOURNS 50K 2W Linear POT 3852A-282-503AL
Description:
- The Bourns 50K 2W Linear Potentiometer 3852A-282-503AL is a high-quality component designed to precisely manage resistance in electronic circuits.
- This potentiometer has a solid design with a cermet element, ensuring durability and dependability.
- It is used for volume control, tuning, and circuit calibration.
Specifications:
- Series: 3852.
- Resistance Rating: 50 KΩ.
- Tolerance Rating: ±10%.
- Power Rating: 2 W.
- Temperature Coefficient: ±150 ppm/°C.
- Number of Turns: 1.
- Adjustment Type: User Defined.
- Termination Style: Solder Lug.
- Mounting Style: Panel Mount.
- Material: Cermet.
- Dimensions: Diameter: 19.05 mm, Length: 22.23 mm.
- Operating Temperature Range: -1°C to +125°C.
