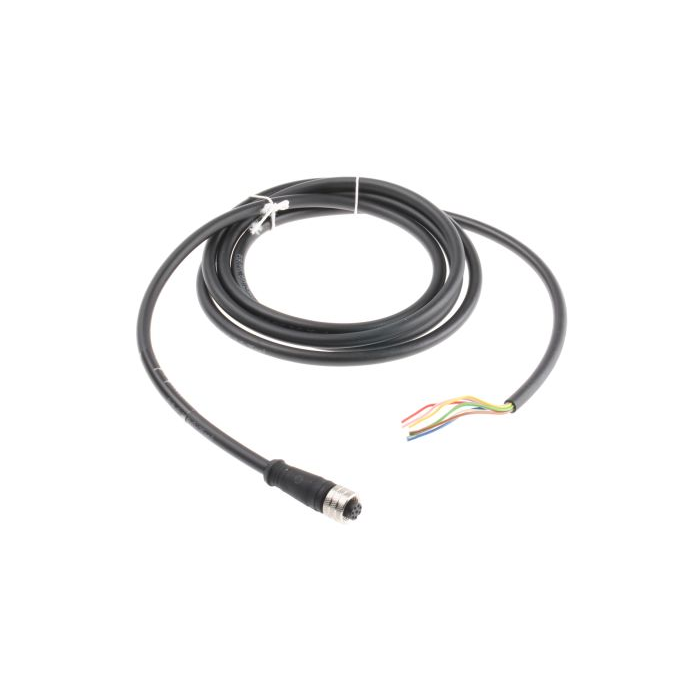

Brad straight M12 to unterminated cable assembly 8 core, 2m Male cable
Description:
- The Brad Straight M12 to Unterminated Cable Assembly is a pre-assembled cable designed for industrial automation and sensor applications.
- It features an M12 male connector on one end and unterminated wires on the other end, allowing for customization to fit specific system requirements.
Specifications:
- Type: Sensor and actuator cable.
- Cable Length: 2 meters.
- Number of Cores: 8.
- Connector Type: Male M12 on one end, unterminated on the other end.
- Conductor Material: Plain copper wire strands.
- Insulation Material: Polyurethane (PUR) or PVC, depending on the variant.
- Jacket Material: Polyurethane (PUR) or PVC, depending on the variant.
- Operating Temperature Range: -20°C to +85°C.
- IP Rating: IP68 (dust-tight and waterproof).
- Flexibility: High flexibility due to fine wire strands and short twisted conductor layers.
- Usage: Ideal for connecting sensors, actuators, transducers, switches, and proximity sensors in industrial automation systems.
