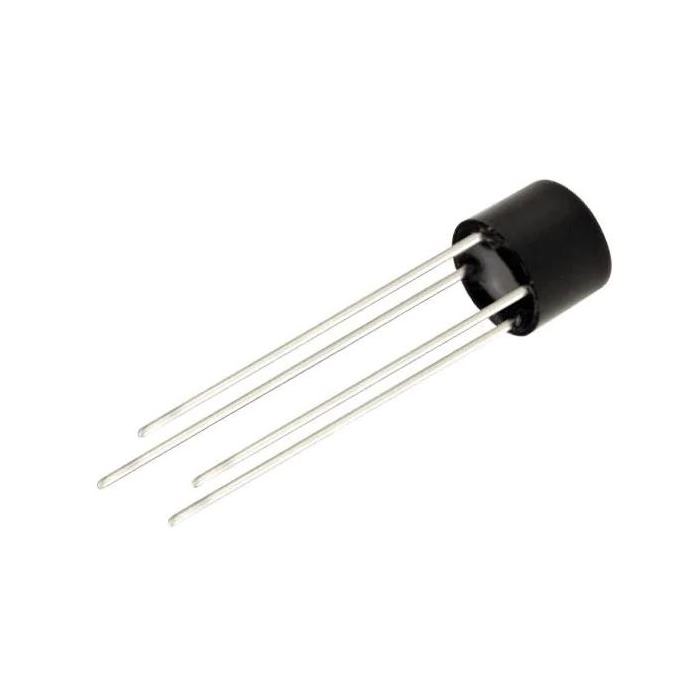

Bridge Rectifier 2A 600V Round
Bridge Rectifier 2A 600V Round:
This 2A, 600V round bridge rectifier is designed for AC-to-DC conversion in compact, low-power applications such as power supplies, chargers, and small household electronics. Its circular design provides easy integration into PCBs.
Specifications:
- Maximum Repetitive Reverse Voltage (VRRM): 600V
- Average Forward Current (IF(AV)): 2A
- Surge Forward Current (IFSM): 50A (8.3 ms single half sine wave)
- Forward Voltage Drop (VF): 1.1V per diode at 2A
- Reverse Current (IR): 5 µA at 600V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Package Type: Round, 4-pin
| SKU | REC-0009-D08 |
|---|
