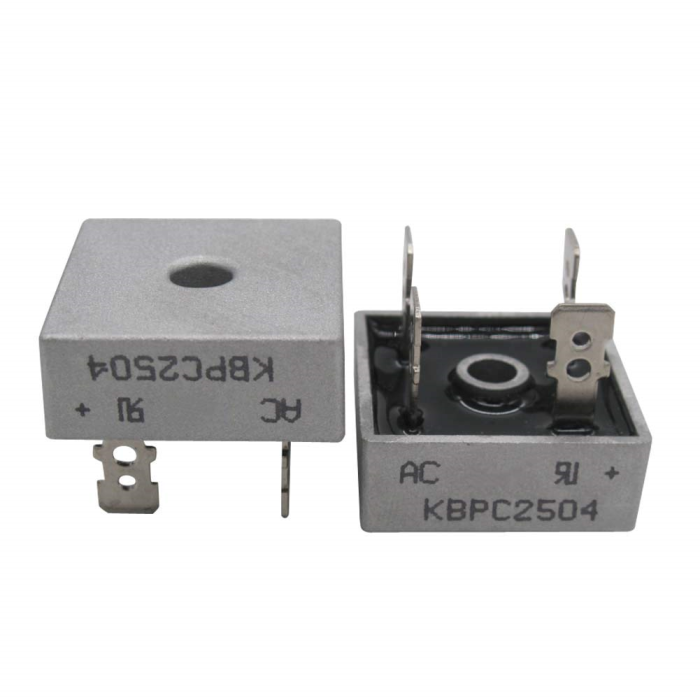

Bridge Rectifier 400V 25A

ZAR 38.30 ZAR 33.30
In stock
SKU
REC-0013-D08

Bridge Rectifier 400V 25A:

The KBPC2504 is a high-current bridge rectifier designed for AC-to-DC conversion in high-power applications such as industrial motor drives, power supplies, and battery chargers. Its robust KBPC package ensures efficient heat dissipation and reliable performance under demanding conditions.

Specifications:

  • Maximum Repetitive Reverse Voltage (VRRM): 400V
  • Average Forward Current (IF(AV)): 25A
  • Surge Forward Current (IFSM): 300A (8.3 ms single half sine wave)
  • Forward Voltage Drop (VF): 1.1V per diode at 25A
  • Reverse Current (IR): 10 µA at 400V
  • Operating Temperature Range: -55°C to +150°C
  • Storage Temperature Range: -55°C to +150°C
  • Package Type: KBPC, 4-pin
