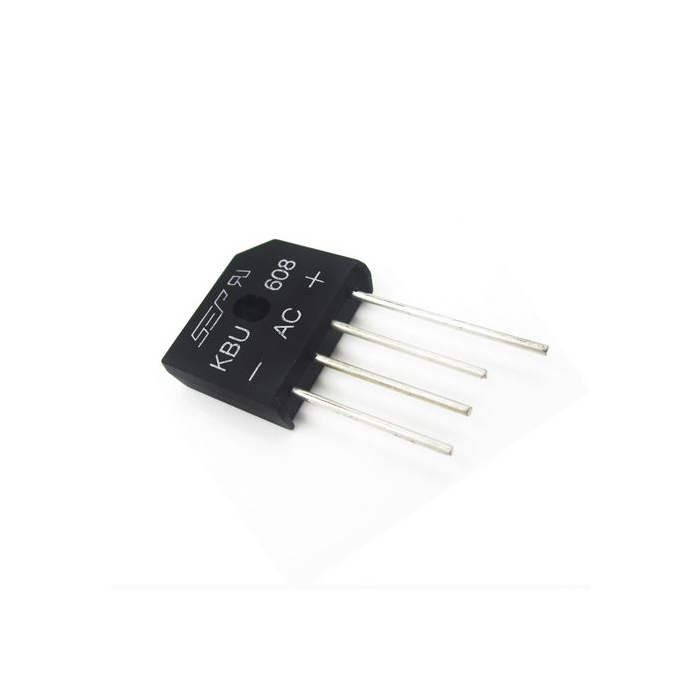

Bridge Rectifier 6A 800V Sil
Bridge Rectifier 6A 800V Sil:
This 6A, 800V silicon bridge rectifier is designed for reliable AC-to-DC conversion in medium-power applications such as power supplies, motor drives, and industrial control circuits. It combines durability and efficiency in a compact package.
Specifications:
- Maximum Repetitive Reverse Voltage (VRRM): 800V
- Average Forward Current (IF(AV)): 6A
- Surge Forward Current (IFSM): 200A (8.3 ms single half sine wave)
- Forward Voltage Drop (VF): 1.1V per diode at 6A
- Reverse Current (IR): 10 µA at 800V
- Operating Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Package Type: Silicon, 4-pin
