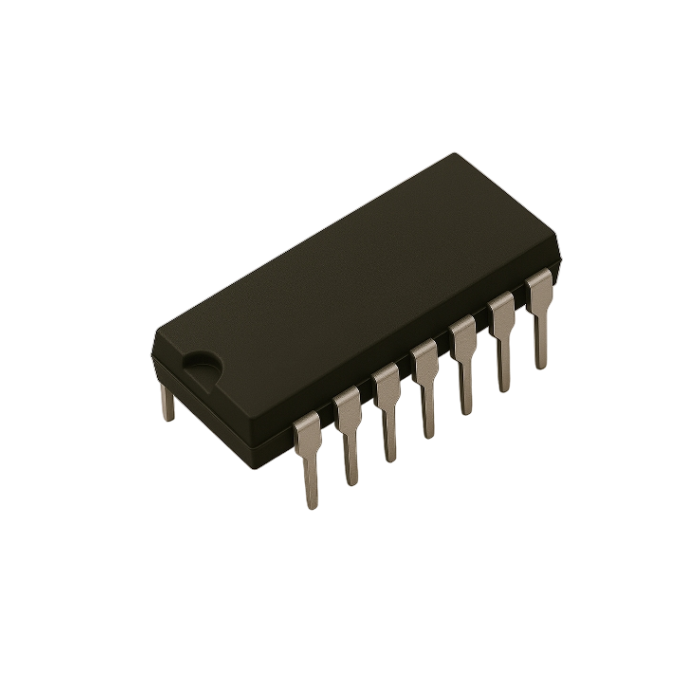

CA3075R Integrated Circuit 14Pin

ZAR 200.79 ZAR 174.60

In stock

SKU

INC-0358-C09

Description:

The CA3075R is a vintage FM-IF amplifier-limiter-detector and audio preamplifier IC, originally manufactured by Harris Semiconductor. It was designed for use in FM radio receivers and similar analog communication systems, where it handled intermediate frequency (IF) amplification, signal limiting, detection, and audio preamplification—all in one compact package.

Specifications:

Function: FM-IF amplifier, limiter, detector, and audio preamp
Package: 14-pin DIP (Dual In-line Package)
Technology: Bipolar analog
Operating Voltage: Typically 12V
Features:
-High gain IF amplifier
-Limiter stage for amplitude stabilization
-Quadrature detector for FM demodulation
-Audio preamplifier output
Applications:
-FM radio receivers
-Communication receivers
-Analog signal processing chains
