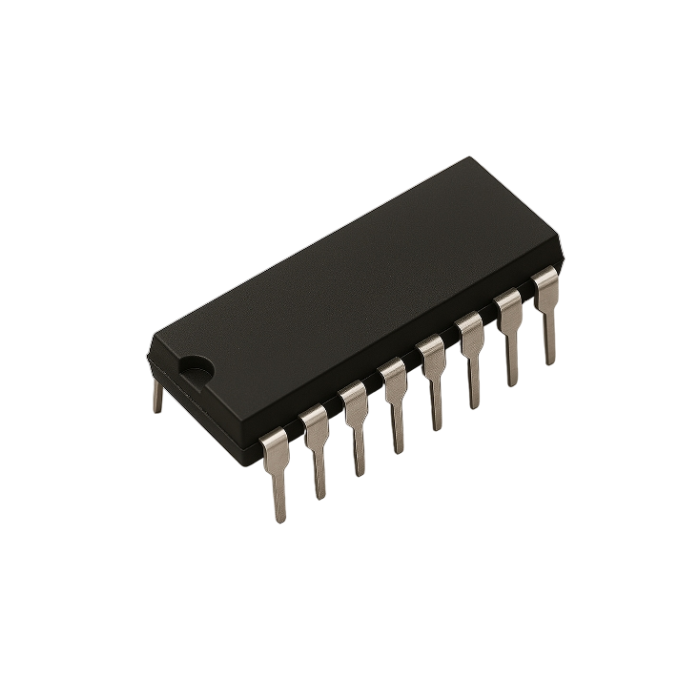

CD 4052BE Integrated Circuit 16Pin
Description:
The CD4052BE is a dual 4-channel analog multiplexer/demultiplexer IC from Texas Instruments, part of the CD4000 series. It’s designed for routing analog or digital signals with minimal distortion, making it ideal for signal switching, data acquisition systems, and audio routing. With its low ON resistance and wide voltage range, it’s a versatile choice for both hobbyist and industrial applications.
Specifications:
- Function: Dual 4-channel analog multiplexer/demultiplexer
- Package: 16-pin PDIP (Plastic Dual In-line Package)
- Operating Voltage Range: 3V to 20V (single supply) or ±3V to ±10V (dual supply)
- Analog Signal Range: Up to 20V peak-to-peak
- ON Resistance: ~125Ω (typical at VDD = 15V)
- Channel Leakage: ±10pA (typical)
- Quiescent Power Dissipation: 0.2µW (typical)
- Switching Type: Break-before-make
- Signal Path: Bidirectional
- Temperature Range: –55°C to +125°C
- ESD Protection: HBM 3000V, CDM 2000V
| SKU | INC-0329-C09 |
|---|
