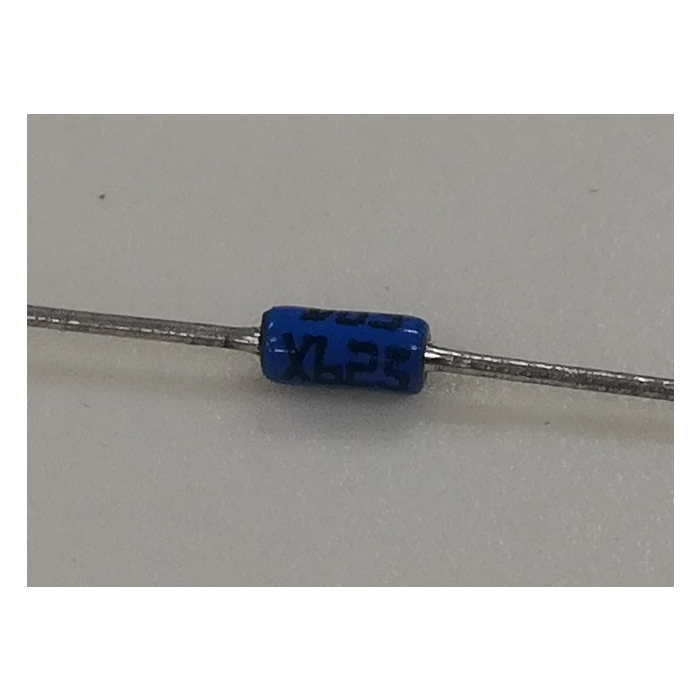

DIAC 36V, 2A, 2-Pin DO-35
DIAC 36V, 2A, 2-Pin DO-35:
The DIAC 36V, 2A, 2-Pin DO-35 is a semiconductor device used in triggering applications for AC signals, often found in light dimmers, motor controllers, and other electronic control circuits. It operates by switching at a specific breakdown voltage, providing a stable and reliable transition for controlling power delivery.
Specifications:
- Breakdown Voltage (V_BO): 36 V
- Rated Current: 2 A
- Peak On-State Current (I_T): 2 A
- Package Type: 2-Pin DO-35
- Surge Current: 5 A
- Holding Voltage: 5 V
- Capacitance (C): 5 pF
- Power Dissipation: 1 W
- Operating Temperature Range: -40°C to 125°C
SKU | DIA-0003-D03 |
---|
