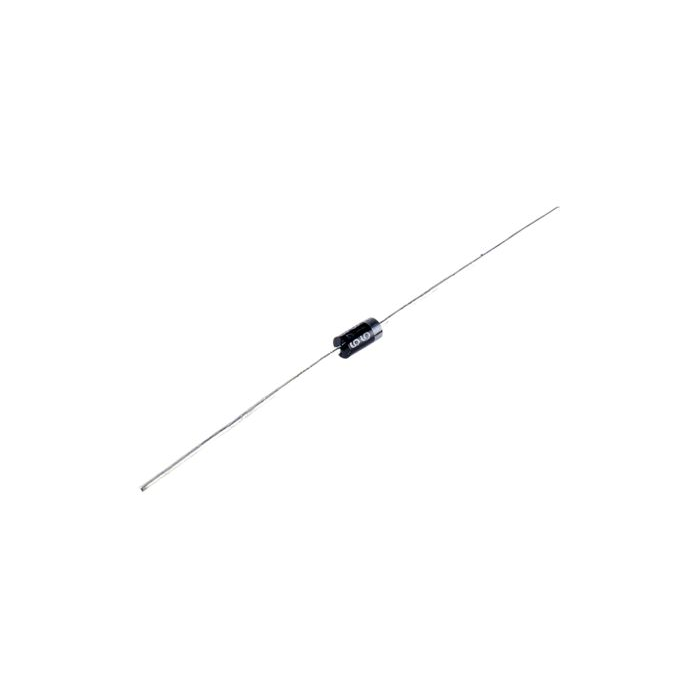

Diode IN5189 40V 1A, 2-Pin DO-41 (10 Pcs)
Diode IN5189 40V 1A, 2-Pin DO-41 (10 Pcs):
The IN5189 is a 40V, 1A general-purpose rectifier diode, suitable for power rectification and protection applications. With a compact DO-41 package, it provides efficient current handling and is designed for use in various electronic circuits, including power supplies and voltage regulation. The package includes 10 pieces for bulk use.
Specifications:
- Peak Inverse Voltage (PIV): 40 V
- Average Forward Current (I_F(av)): 1 A
- Forward Voltage (V_F): 1.1 V (at I_F = 1 A)
- Reverse Leakage Current (I_R): 5 µA (at V_R = 40 V)
- Reverse Recovery Time (t_rr): 75 ns
- Package Type: DO-41
- Operating Temperature Range: -55°C to 150°C
- Applications: Power rectification, voltage regulation, and protection circuits
| SKU | DIO-0019-B01 |
|---|
