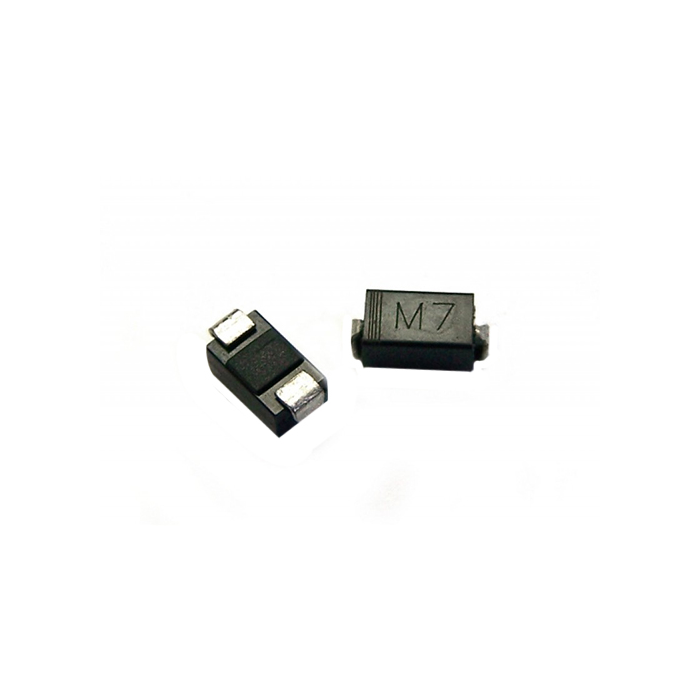

Diode SMD 1N4007
Diode SMD 1N4007:
The 1N4007 is a general-purpose rectifier diode, widely used for power conversion and protection circuits. Its SMD (Surface Mount Device) package makes it suitable for compact, space-saving applications. It can withstand high reverse voltage (1000V) and handle moderate current (1A), making it ideal for use in power supplies, transformers, and rectification in low- to medium-power circuits.
Specifications:
- Peak Inverse Voltage (PIV): 1000 V
- Average Forward Current (I_F(av)): 1 A
- Forward Voltage (V_F): 1.1 V (at I_F = 1 A)
- Reverse Recovery Time (t_rr): 75 ns
- Reverse Leakage Current (I_R): 5 µA (at V_R = 1000 V)
- Package Type: SMD
- Operating Temperature Range: -55°C to 150°C
- Applications: Rectification in power supplies, over-voltage protection, and freewheeling diodes
