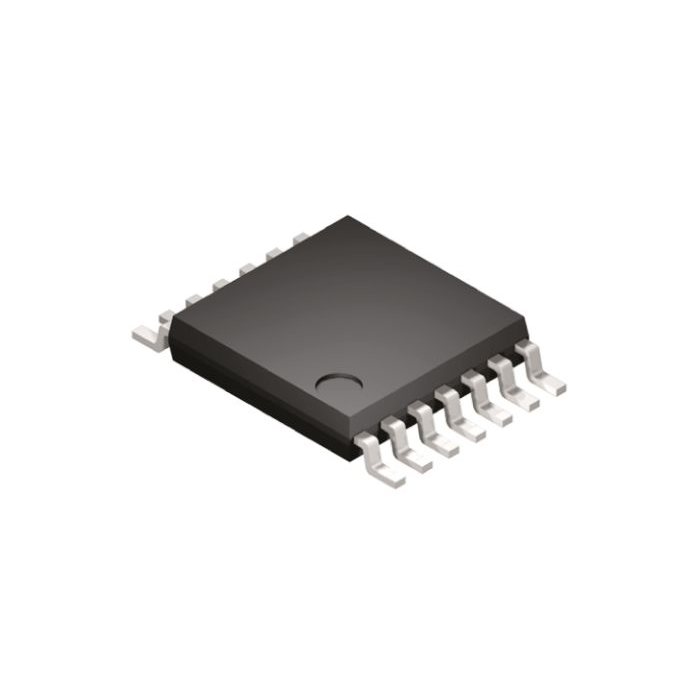

DiodesZetex 74HCT14T14-13, Hex Schmitt Trigger Inverter, 4.5V 5.5 V, 14-Pin TSSOP
DiodesZetex 74HCT14T14-13, Hex Schmitt Trigger Inverter, 4.5V 5.5 V, 14-Pin TSSOP:
The Diodes Zetex 74HCT14T14-13 is a Hex Schmitt Trigger Inverter IC designed for digital signal processing. It provides six independent inverters with Schmitt-trigger inputs to transform slowly changing or noisy input signals into clean, digital outputs. It is suitable for applications requiring signal conditioning, waveform shaping, and noise elimination.
Specifications:
- Supply Voltage Range: 4.5V to 5.5V
- Logic Type: Schmitt Trigger Inverter
- Number of Channels: 6 (Hex)
- Input Threshold: CMOS/TTL Compatible
- Output Current (High/Low): ±4 mA
- Propagation Delay: 10 ns (at 5V, typical load)
- Package: TSSOP-14 (Thin Shrink Small Outline Package)
- Operating Temperature Range: -40°C to +125°C
- Pin Count: 14
- Power Dissipation: 500 mW (maximum)
| SKU | DIO-0040-B01 |
|---|
