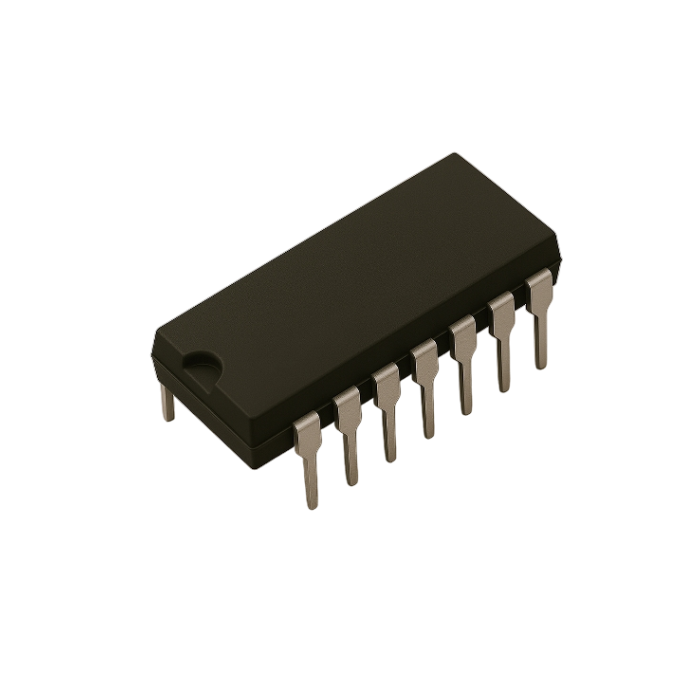

DM936N Integrated Circuit 14Pin

ZAR 24.43 ZAR 21.24

In stock

SKU

INC-0359-C09

Description:

The DM936N is a vintage hex inverter IC from National Semiconductor’s 936 series, built using DTL (Diode-Transistor Logic) technology. It contains six independent inverters, each with a single input and output, and was commonly used in early digital logic systems before TTL and CMOS became dominant.

Specifications:

Function: Hex inverter (6 × NOT gates)
Logic Family: DTL (Diode-Transistor Logic)
Package: 14-pin DIP
Inputs: 6 single-input logic gates
Outputs: 6 inverted outputs
Technology: Bipolar DTL
Applications:
-Early digital logic systems
-Signal inversion
-Logic level control
