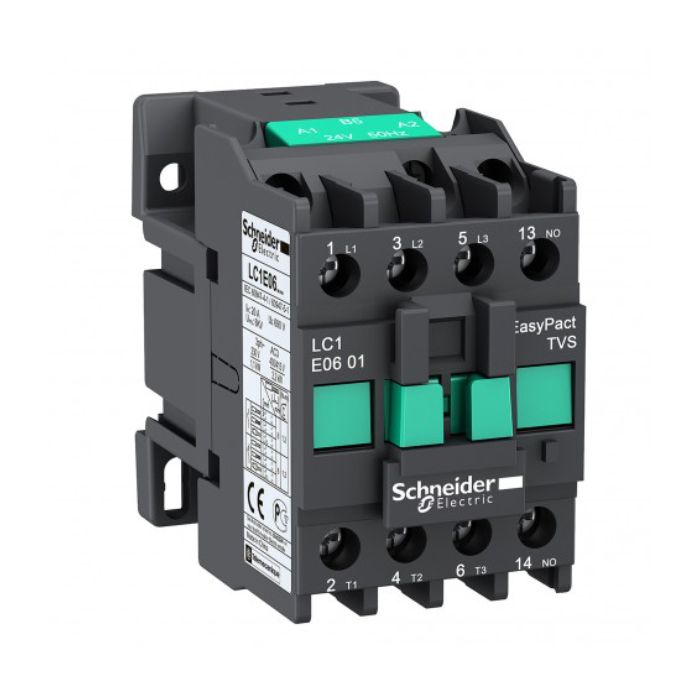

EasyPact TVS contactor 3P(3 NO)
Description:
- The EasyPact TVS Contactor 3P (3 NO) - AC-3 - <= 440 V 9A - 110 V AC coil, LC1E0910F5, is a reliable and durable contactor for motor control applications.
- The range is renowned for its ease of installation and operation.
This contactor is suited for use in electro-domestic and HVAC systems, and it offers a low-cost solution for basic control duties. - It has a 110 V AC coil and is rated for a maximum operational voltage of 440 V AC and current of 9A.
- The contactor is designed to survive hostile environments and has great electrical and mechanical strength.
Specifications:
- Poles: 3P (3 NO).
- Utilization Category: AC-3.
- Rated Operational Voltage: <= 440 V AC.
- Rated Operational Current: 9 A.
- Control Circuit Voltage: 110 V AC.
- Rated Making Capacity: 320 A at 440 V AC.
- Rated Breaking Capacity: 256 A at 440 V AC.
- Short-Time Withstand Current: 260 A at 40 °C for 10 seconds.
- Average Impedance: 2.5 mOhm.
- Rated Insulation Voltage: 690 V.
- Overvoltage Category: III.
- Pollution Degree: 3.
- Mechanical Durability: 8,000,000 cycles.
- Electrical Durability: 5,000,000 cycles.
- Operating Temperature Range: -5°C to 55°C.
- Mounting: DIN-rail.
- Compliance: IEC, CCC, EAC certified, Green Premium compliant (RoHS/REACH).
