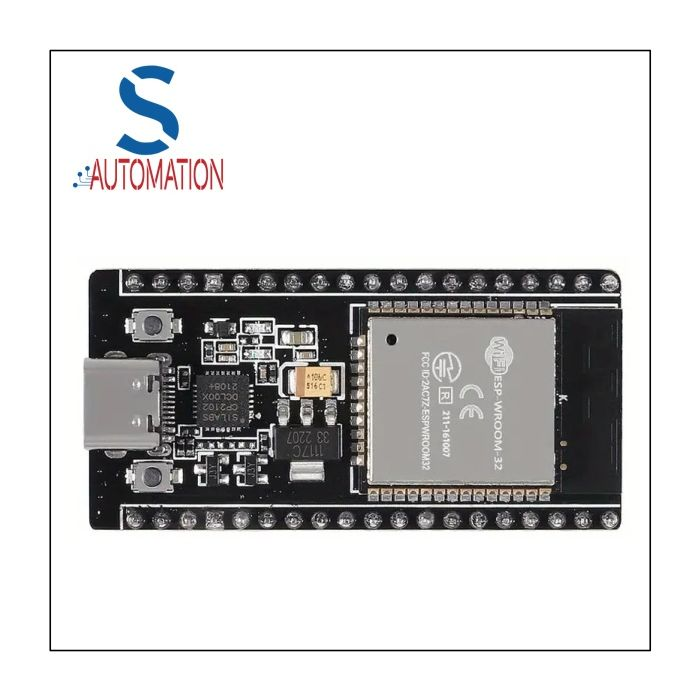

Specifications:

• Processor: Dual-core 32-bit LX6 microprocessor with clock frequency up to 240 MHz
• Memory: 520 KB of SRAM, 448 KB of ROM, and 16 KB of RTC SRAM.
• Connectivity: Supports 802.11 b/g/n Wi-Fi and Bluetooth v4.2 (Classic and BLE).
• GPIOs: 34 programmable GPIOs.
• ADC Channels: Up to 18 channels of 12-bit SAR ADC and 2 channels of 8-bit DAC.
• Serial Connectivity: Includes 4 x SPI, 2 x I2C, 2 x I2S, and 3 x UART.
• Ethernet MAC: For physical LAN communication (requires external PHY).
• SD/SDIO/MMC: 1 Host controller and 1 Slave controller.
• PWM: Motor PWM and up to 16 channels of LED PWM.
• Security: Secure Boot and Flash Encryption.
• Cryptographic Hardware: Supports AES, Hash (SHA-2), RSA, ECC, and RNG.
• Operating Temperature: -40°C to +85°C.
• Power Consumption: 80 mA typical.
• Dimensions: 18 mm (L) x 25.5 mm (W) x 2.8 mm (H).
• Pin Pitch: 1.27 mm.
• Shielding Can Height: 2 mm.
• PCB Thickness: 0.8±0.1 mm.
