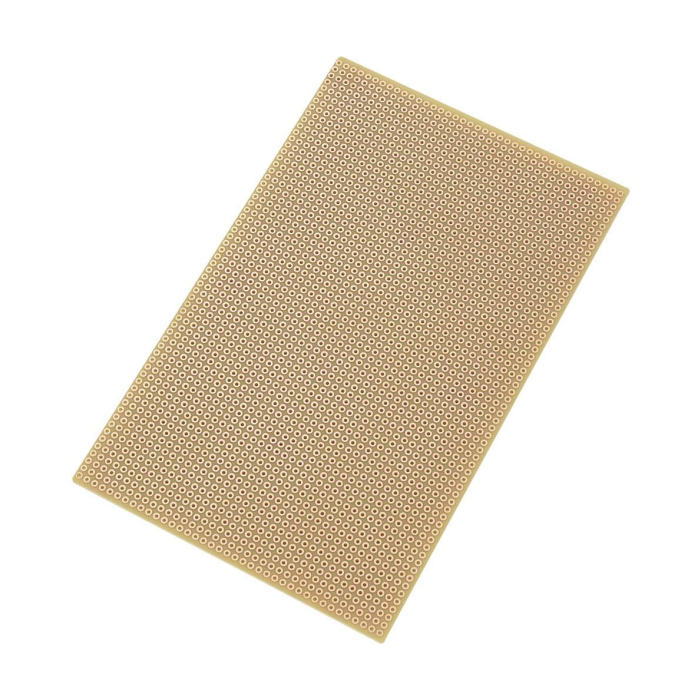

Experimental Board Dot Grid 100 160 x 100mm
Description:
The Experimental Board Dot Grid 160x100 mm is a prototyping board featuring a dot grid of pre-drilled holes for flexible component placement and circuit building. The dot grid design allows for free-form soldering of components and wires, making it suitable for experimenting with various circuit layouts and designs.
Specifications:
- Size: 160 mm x 100 mm
- Material: Fiberglass (FR4) or phenolic resin
- Hole spacing: 2.54 mm (0.1 inch)
- Hole diameter:1 mm (suitable for standard component leads)
- Grid type: Dot grid with individual copper pads around each hole
- Copper thickness: 35 µm (1 oz per square foot)
- Layer type: Single-sided (copper on one side)
- Surface finish: Pre-drilled and ready for soldering
- Board thickness: 1.5 mm
- Application: Prototyping, circuit testing, and DIY electronics projects.
